Professional technology
Mounting structures for every roof and every site
Benefiting from our continuous effort to optimise every solution and from our several manufacturing bases, we provide high-quality, economical solar mounting products that bring added value to our customers.
Our products
Variety of excellent products

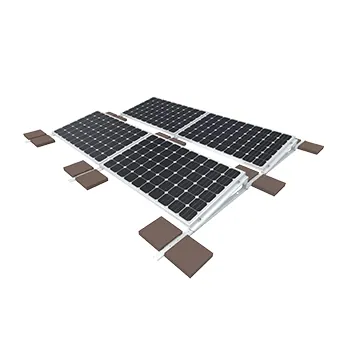

Double Sided Ballasted System
Ballasted east–west and south systems, no roof penetration.
- Roof pitch
- ≤ 10°
- Fixing
- Ballast, no penetration
- Material
- EN AW-6063-T66, A2-70

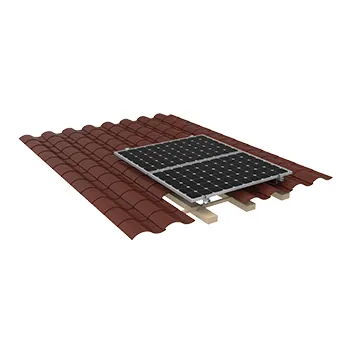

Tile Roof
Hooks, rails and clamps for tile, metal and fibre-cement roofs.
- Roof pitch
- 0–60°
- Wind load
- up to 60 m/s
- Snow load
- up to 1.8 kN/m²

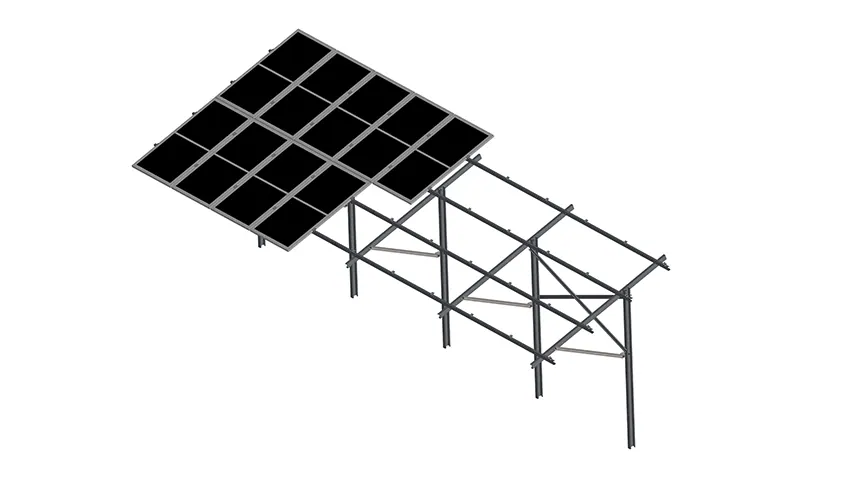

Single Ramming Pile
Ramming piles, ground screws, PHC and concrete foundations.
- Tilt
- 5–40°
- Pile depth
- 1,500–2,000 mm
- Wind load
- up to 57 m/s

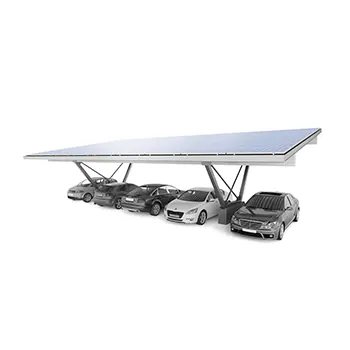

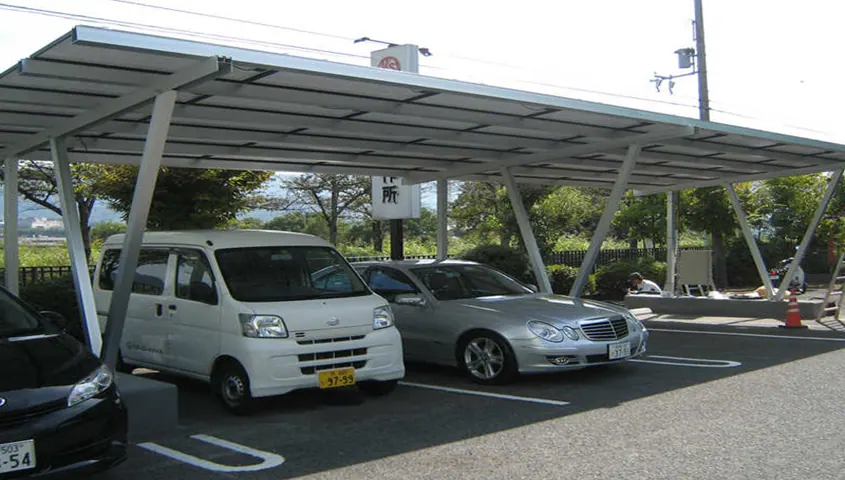

Aluminum Carport
Anodised aluminium carports that keep cars dry and make power.
- Two bays
- 4–5 kW
- Wind load
- 38 m/s
- Material
- Al 6005-T6, SUS304

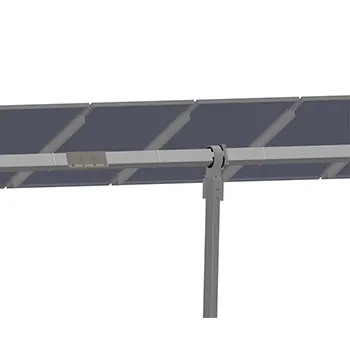

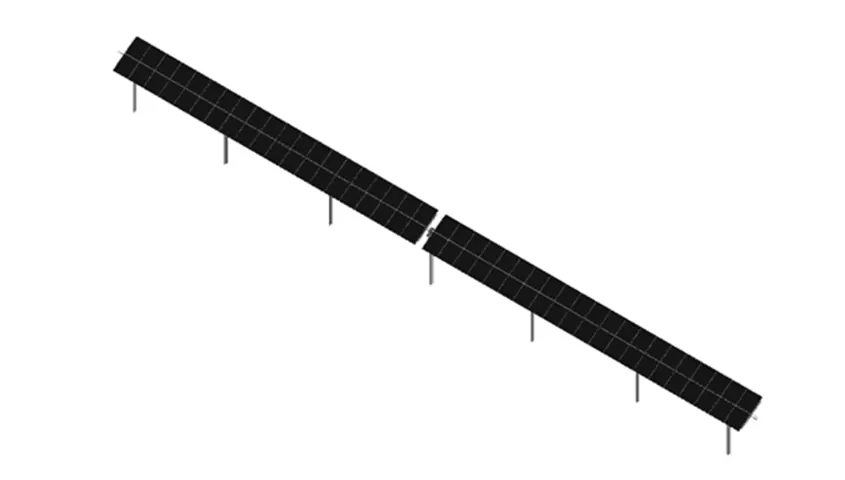

Independent Single Axes Tracker
Self-powered single-row trackers for uneven ground.
- Drive
- Slewing drive, 24 V DC
- Panels per row
- 80–90
- N–S slope
- up to 15%

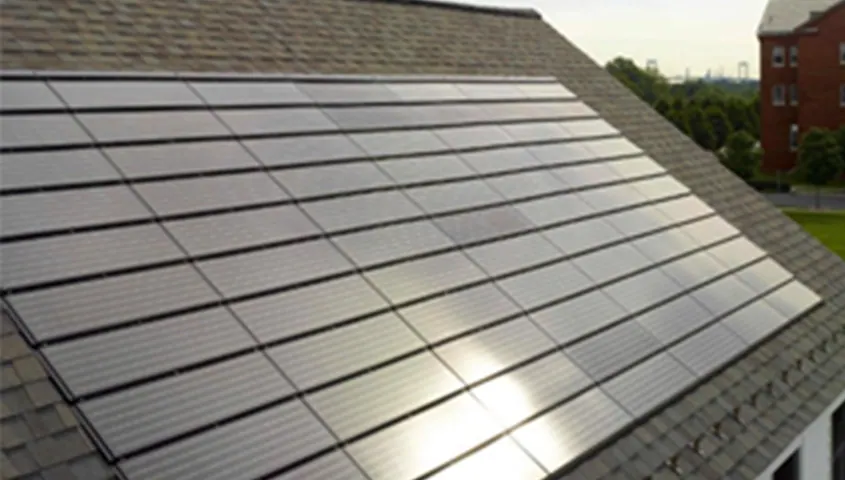

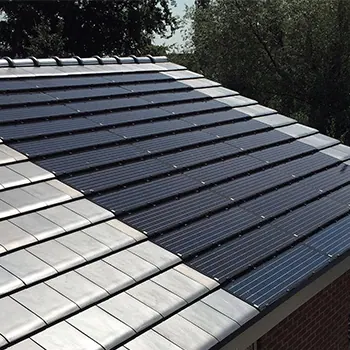

BIPV Solar Solution
Solar roof tiles that replace the roof covering.
- Output
- 110 W per tile
- Cell efficiency
- 22%
- Tile size
- 1,780 × 342 mm

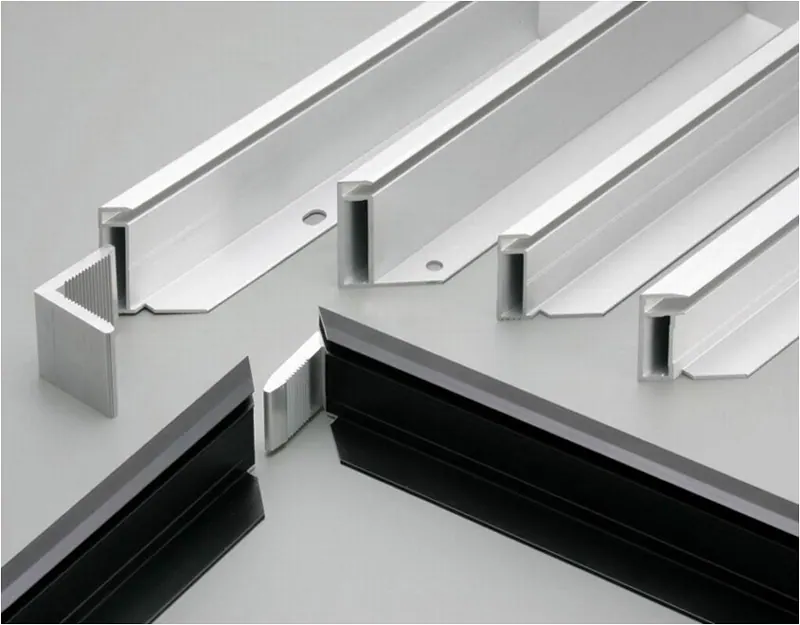

Aluminum Frame for Solar Panel
Extruded aluminium frames for solar module makers.
- Alloy
- 6063-T5, 6063-T66, 6005-T6
- Finish
- Anodised AA10–AA20
- Colour
- Silver, black
Related products
You might like as well

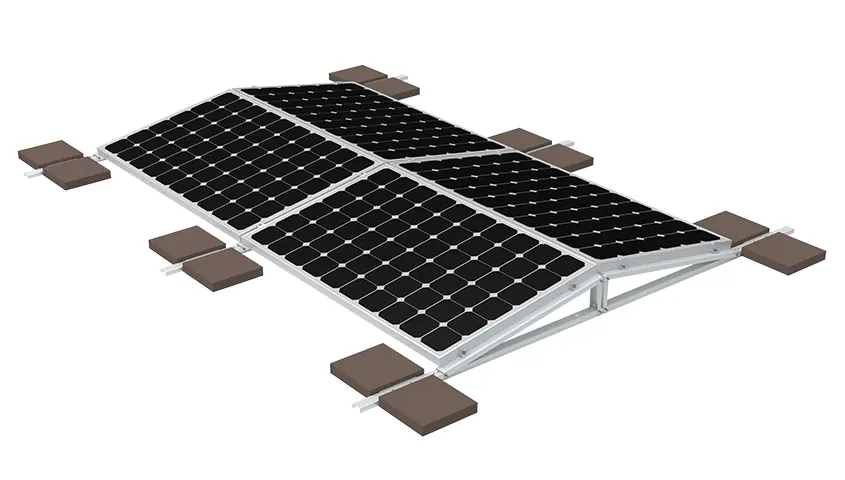

- CF103
Double Sided Ballasted System
Completely innovative component-reduced, low ballast unilateral elevation system for variable orientation of west and east, with same yield performance.
View system - CT20

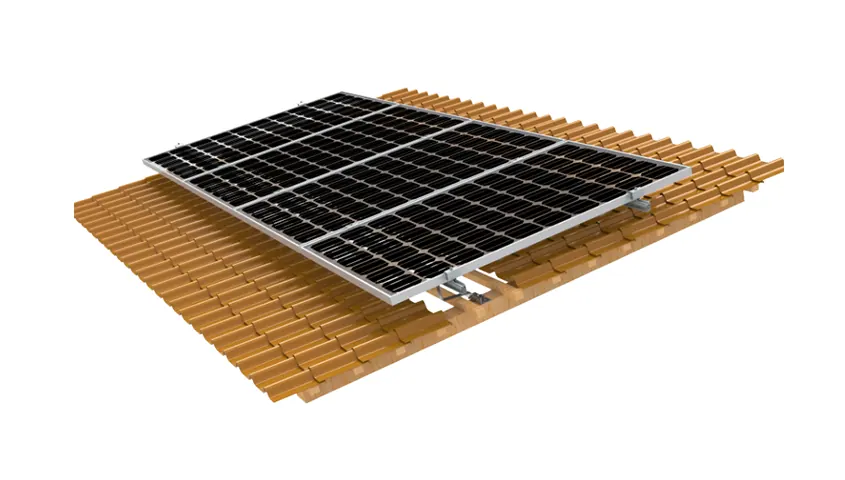

Tile Roof
CM Solar #28 hook is bottom mounted solution matched with aluminum rails and clamps for tile roof. Its double adjustable transfer kits can meet with various tiles needs.
View system - CG201
Single Ramming Pile
Simple and fast installation Instead of preparing cement base in advance the vertical shaft is punched into the ground (pile driving depth: 1500-2000mm)
View system

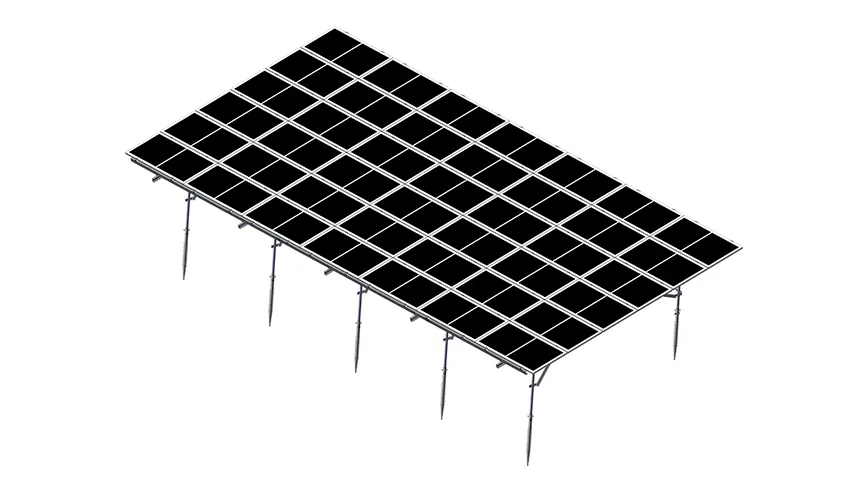

CG601Ground Screw Mounting Solution
Simple and fast installation No precast foundation base no onsite welding or fabrication as required in other solutions like piles which allows a significant cost reduction.
View systemAluminum Carport
Smart solution for solar energy and car. People who want reduce the electricity bill. People whose roof is already installed solar systemand want to increase power generation.
View system

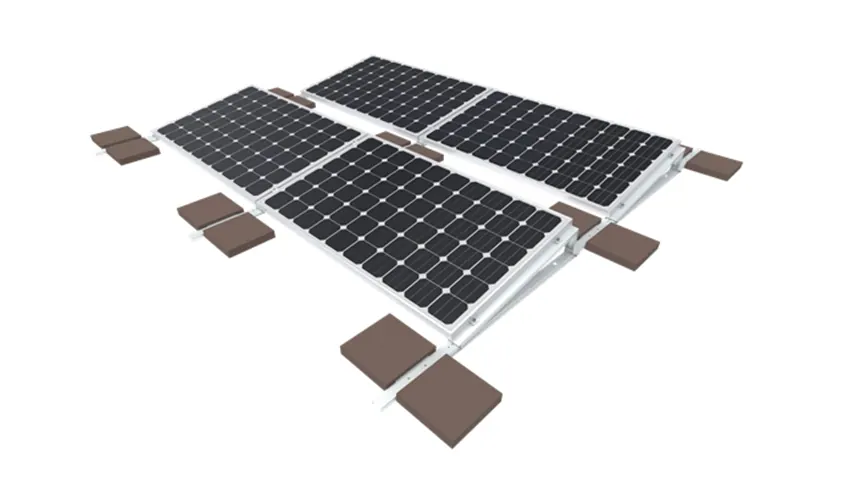

CF101Single Sided Ballasted System
View system

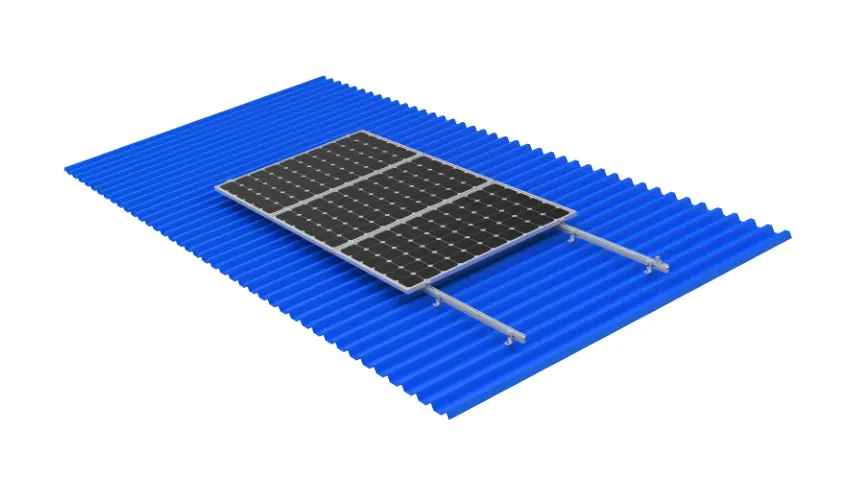

C30Trapezoidal-Corrugated Sheet Metal
View system

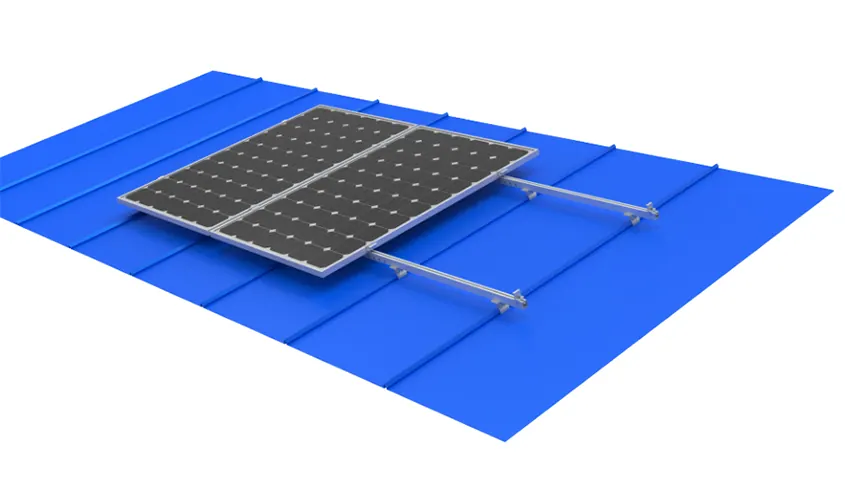

C40Standing Seam
View system

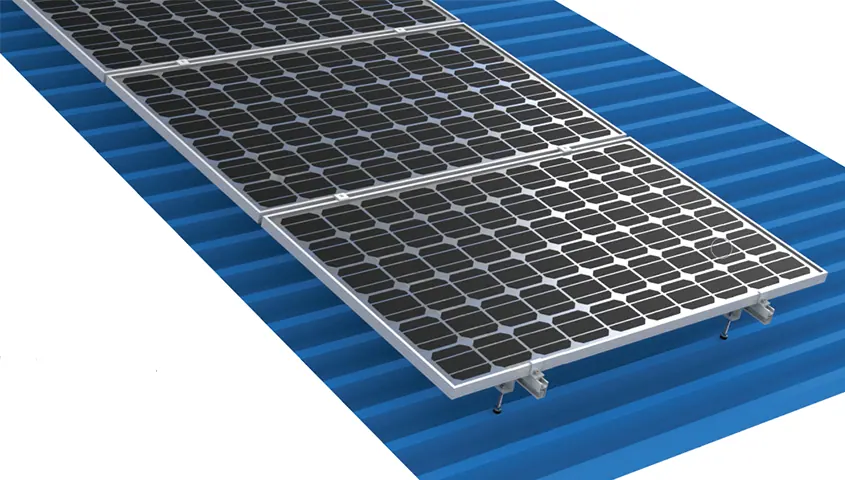

C20Corrugated Fibre Cement-Sandwich
View system

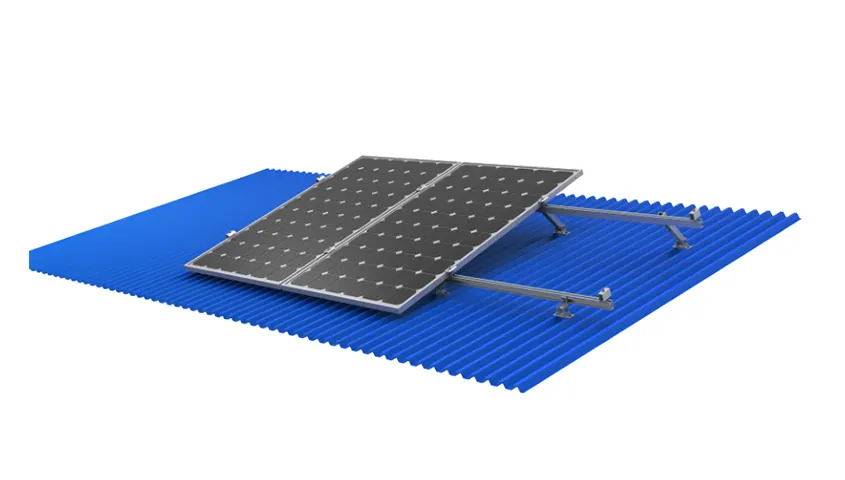

CF104Raised Panel
View system

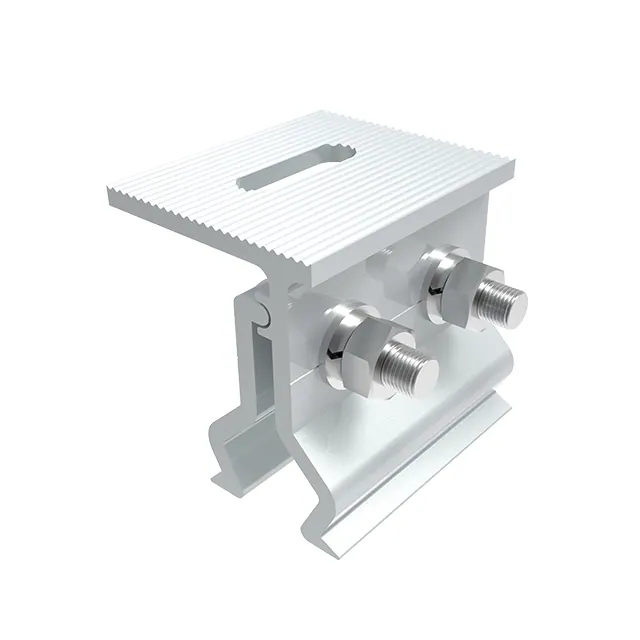

Roof Mount Kits
View system

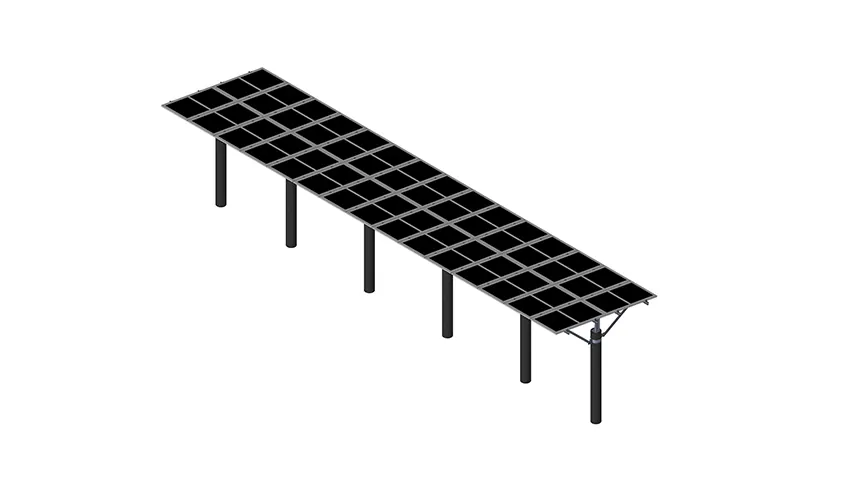

CG101PHC-Pile
View system

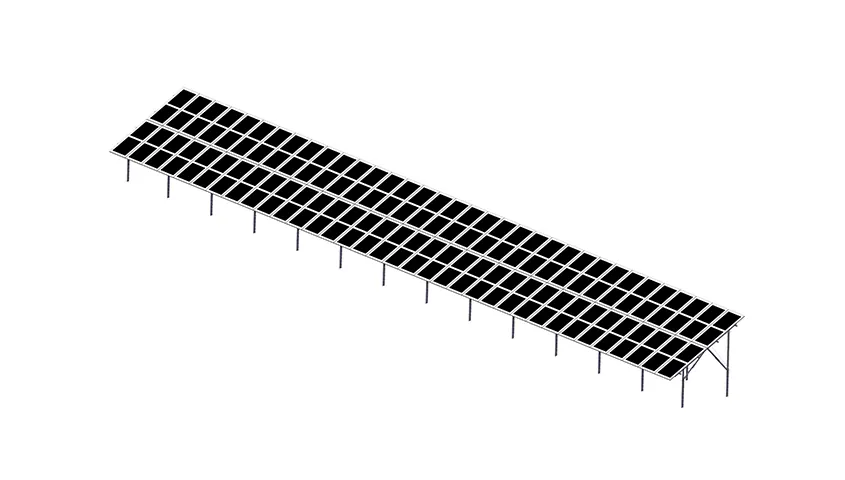

CG301Double Ramming Pile
View system

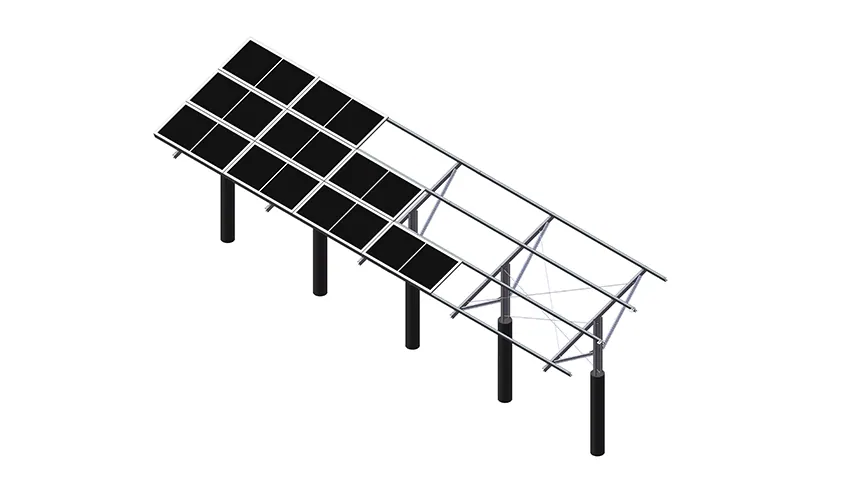

CM401Single Pile with Cement Injection
View system

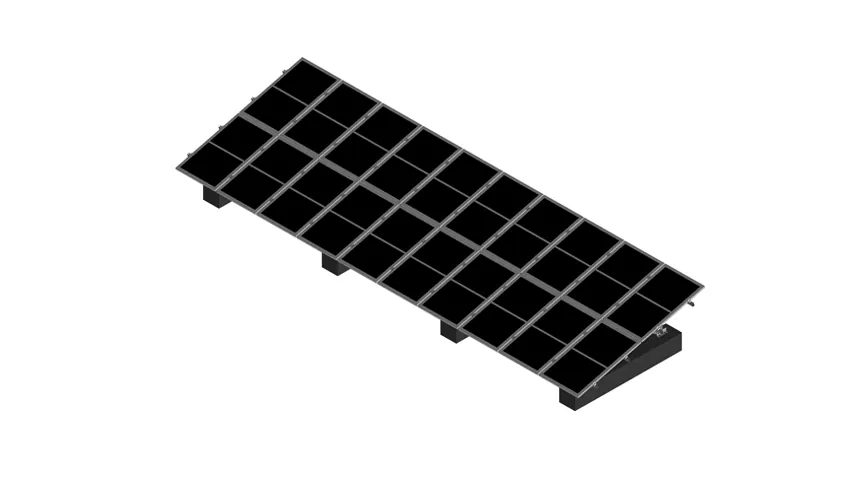

CG501Double Pile with Cement Base
View system

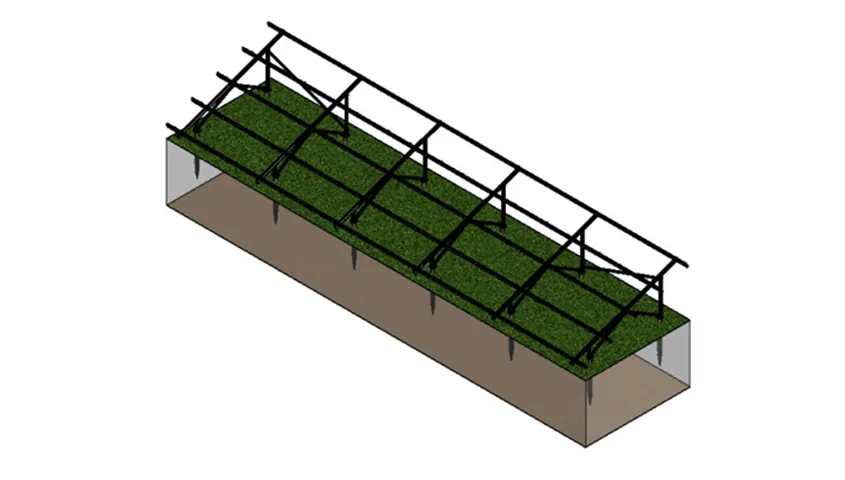

CG701Aluminum Structure
View systemIndependent Single Axes Tracker
View systemBIPV Solar Solution
View systemAluminum Frame for Solar Panel
View system

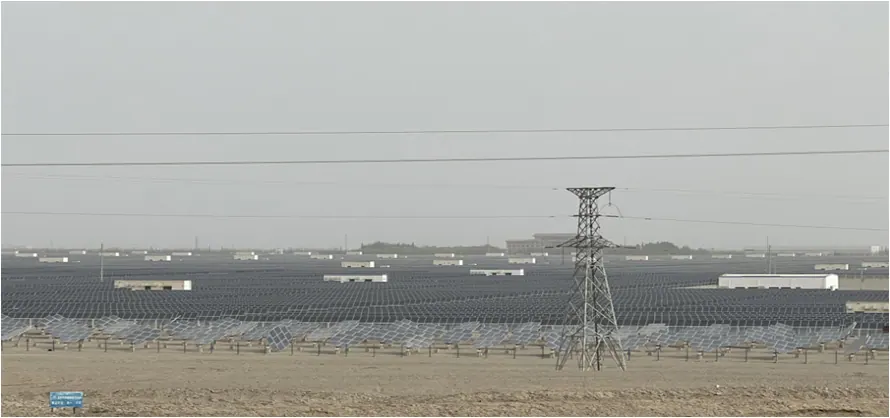

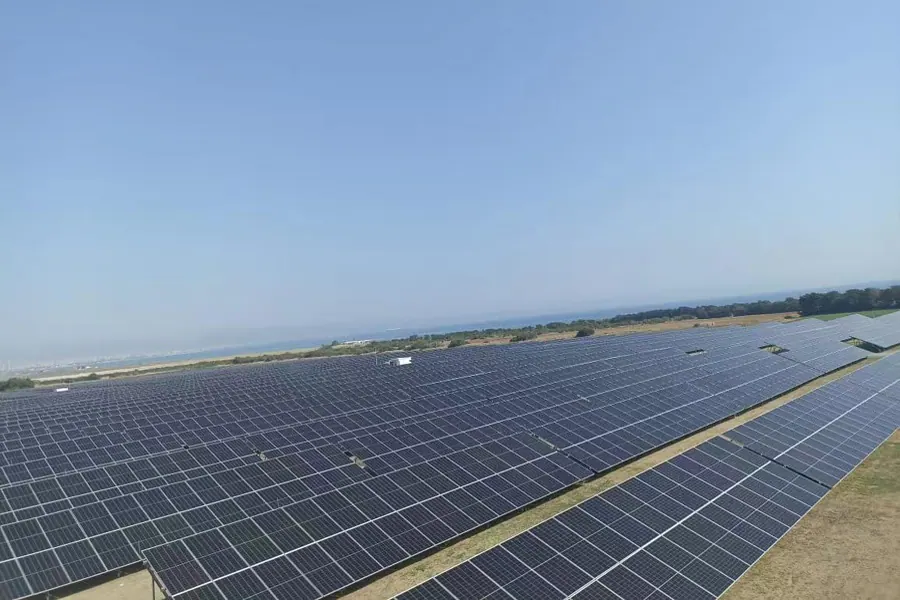

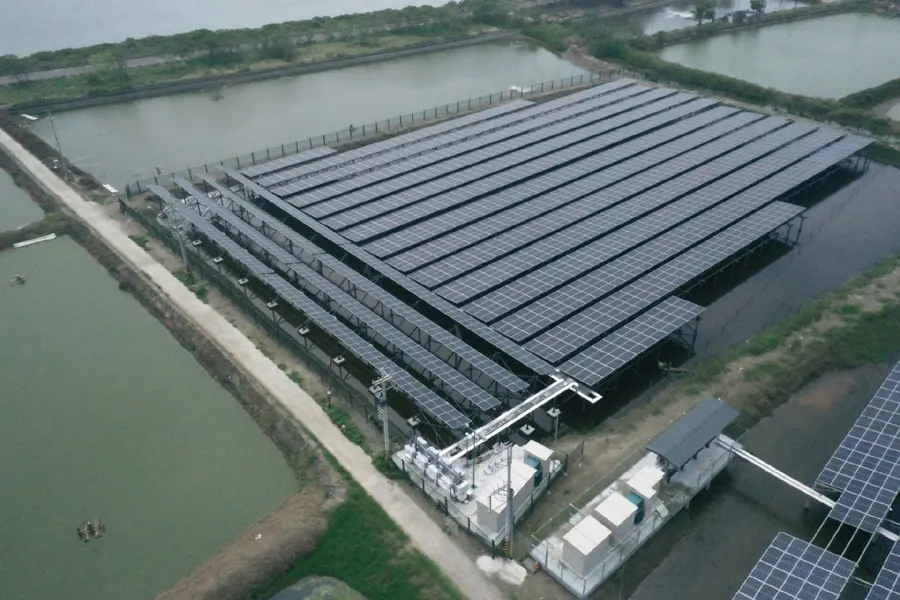

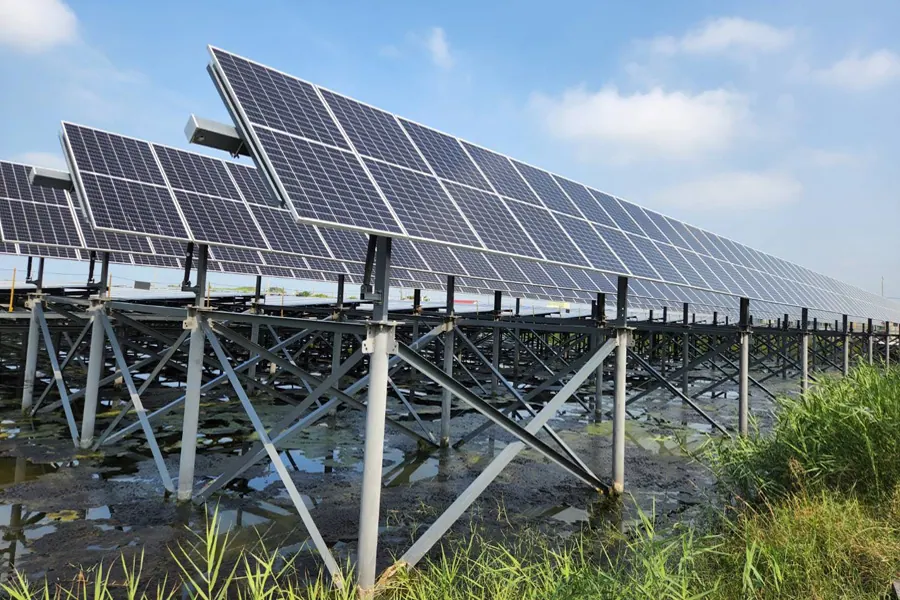

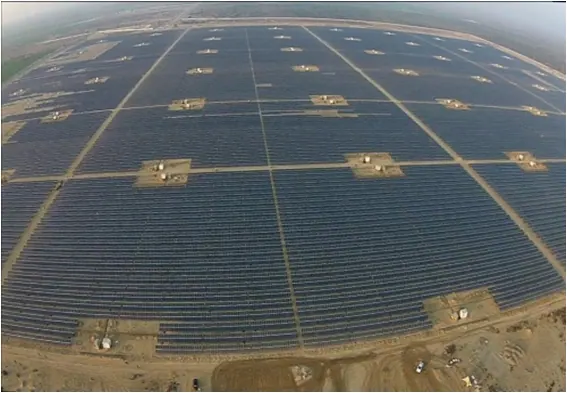

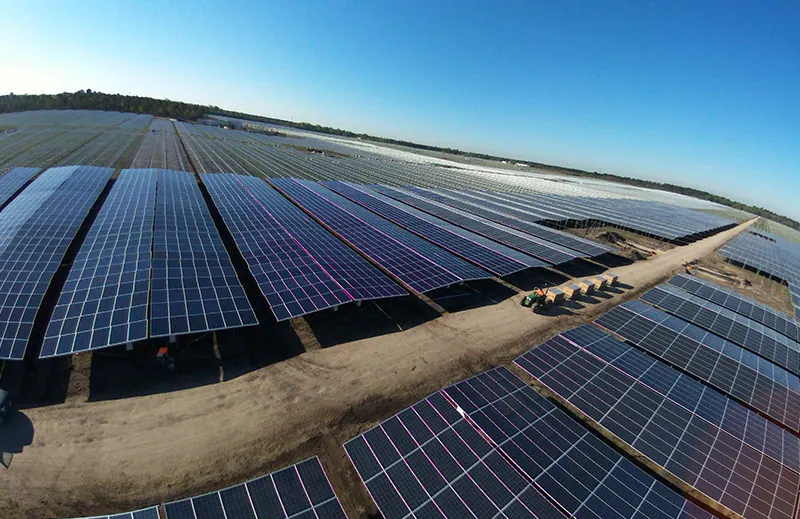

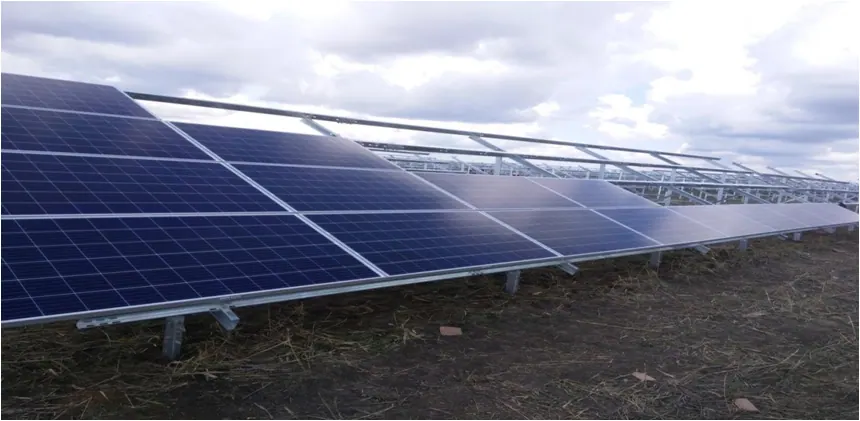

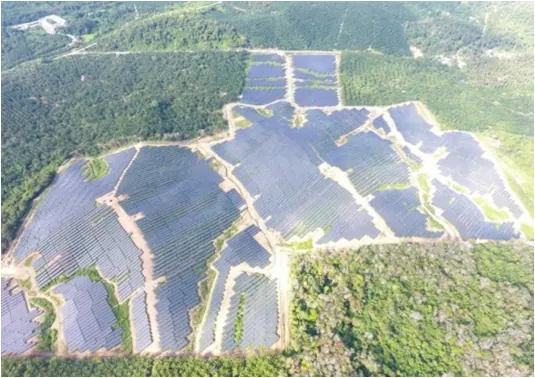

Solar cases
Projects built on CM structures
Utility plants, rooftops and carports in more than 30 countries and regions.
Get to know us
CM Solar, your PV racking partner
Since 2014 we have been developing pioneering, highly functional mounting system solutions for photovoltaic installations around the world. We design our systems in our own product development department, where we continually optimise and adapt them to the ever-changing market.
Our customers benefit from our long-standing international experience and expertise, as well as our personal approach to customer relations. Thanks to our own locations and our worldwide sales network, we look forward to working with you!
With more than 10 years of experience, our team strives to provide the best engineering service to customers all over the world.
- Manufacturing bases
- 3
- Total global cases
- 6 GW+
- References worldwide
- 560+

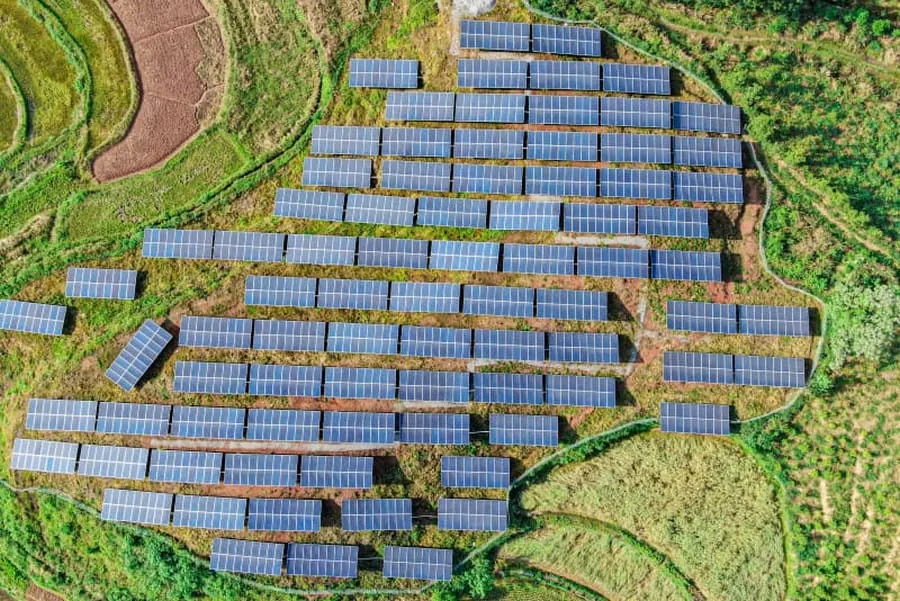

Made to the project

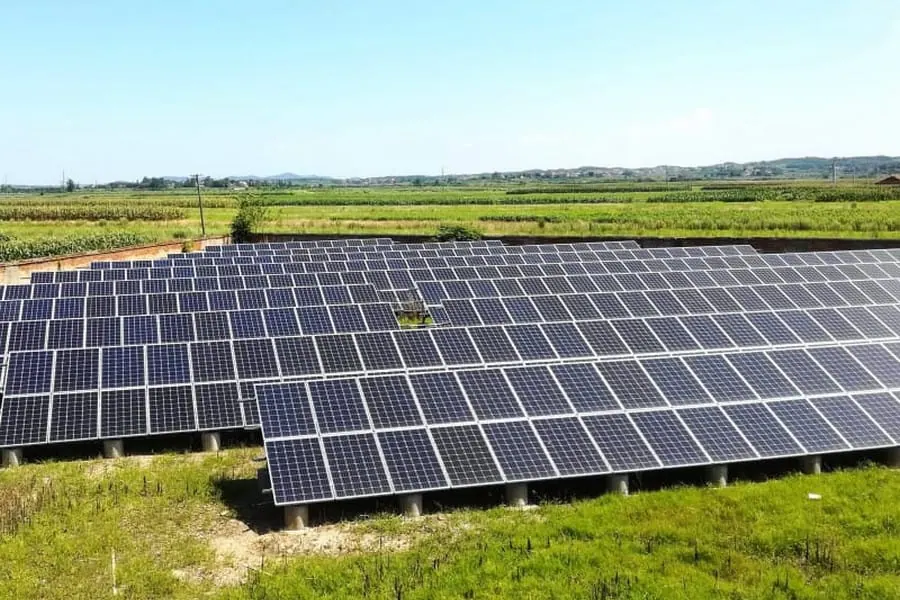

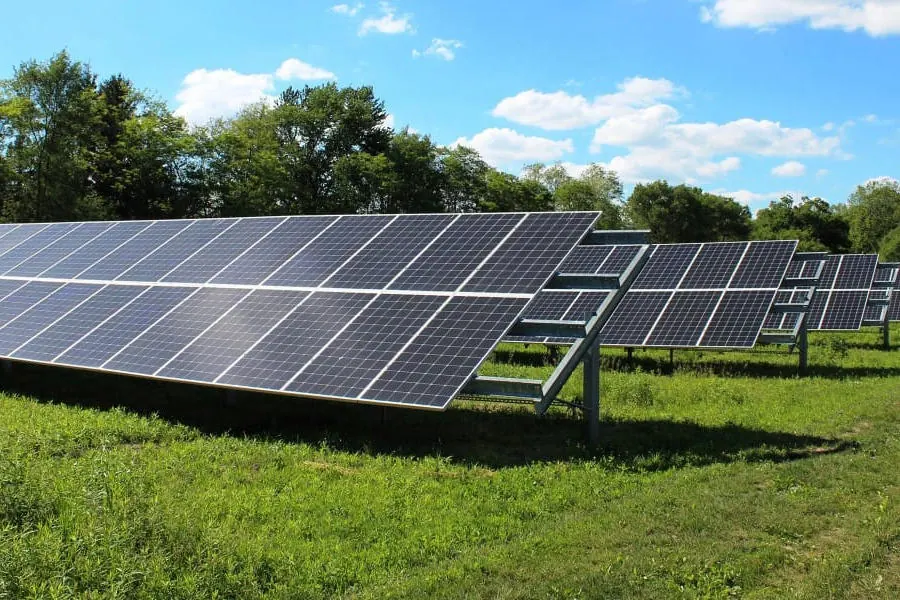

The professional choice
CM Solar’s unique software-based process lets us quickly develop and manufacture aluminium-based racking solutions tailor-made for any project’s requirements, design or engineering challenges.
Service
Engineering support from design to after-sales
Engineering design
We analyse each project’s conditions, including the site terrain, soil conditions, module layout, inverter specification, communication and so on, and provide customers with the most economical and reliable solar mounting solutions. In addition, we provide strength calculations and CFD simulation to prove the reliability of our design.
Pull-out test
We provide our customers with an on-site pull-out test service for ground screws and ramming piles, and provide the pull-out test report.
Training
Our engineers provide on-site installation training for customers all over the world. The training can also be done over the internet or by telephone conference.
After-sales service
If a problem related to our products is found, we respond and provide a solution within 24 hours on working days. The problem can be diagnosed over the internet, and we can also send our engineer to the site to solve it.
