BIPV

BIPV Solar Solution

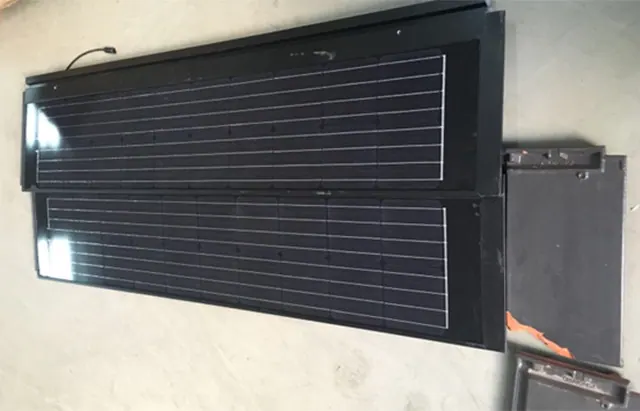

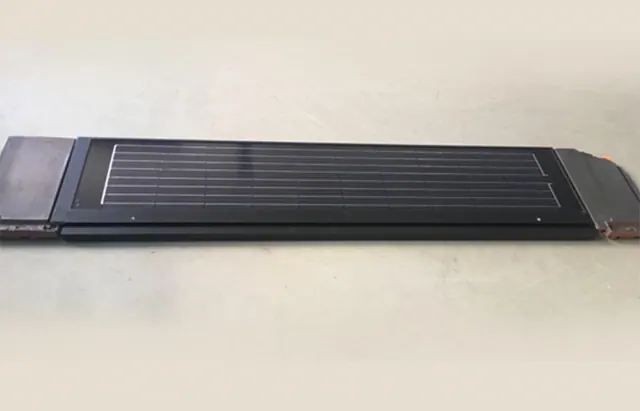

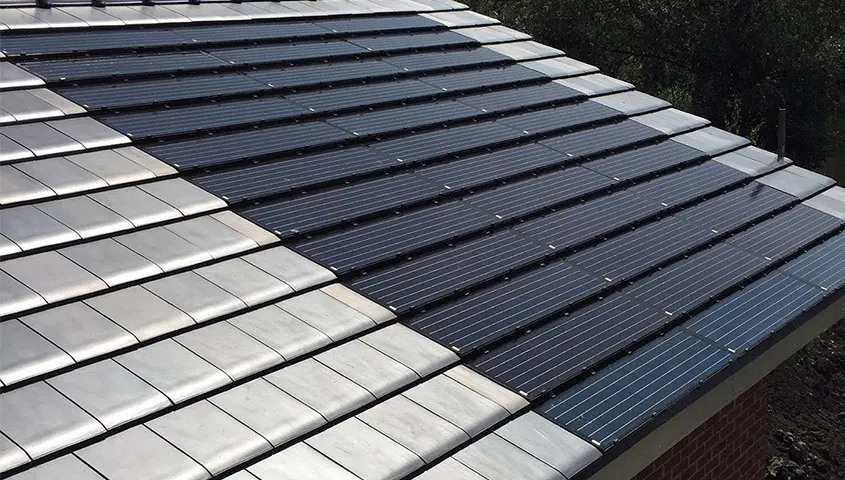

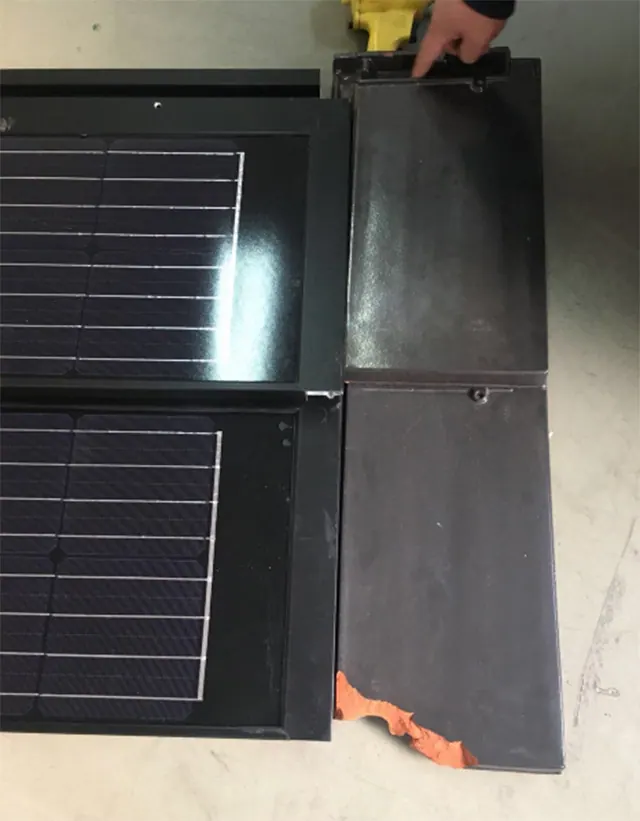

Building-integrated PV: solar tiles that are the roof.

Smart solution for solar Energy

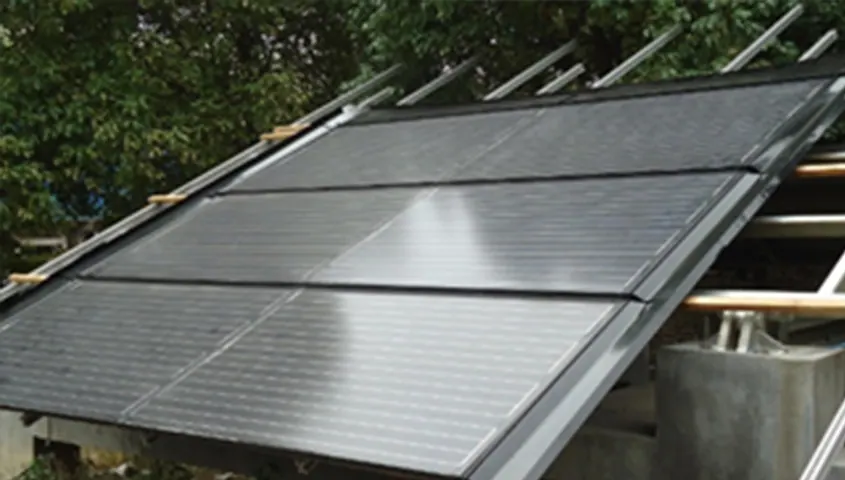

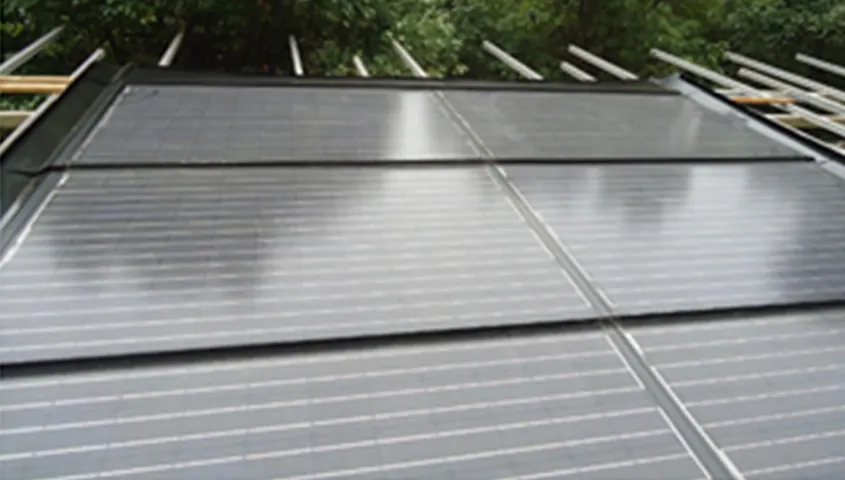

The Planum Photovoltaic Solar System must be installed in a ventilated roof with double strips and sheet waterproof. CM Solar offers all the complements and accessories for a perfect ventilated roof with 360 ° Solutions.
Consult the CM Solar tile installation manual for all the information regarding the installation of ceramic tiles. Both this installation manual and the Solar System installation manual Photovoltaic Planum must be read together.

Technical data

Type	CMMST110
Maximum power output（W）	110
Tolerance of power output（W）	±3%
Open-circuit voltage Voc(V)	22.5
Short-circuit current Isc(A)	6.79
Optimum operating voltage Vm(V)	10
Recommended current Im(A)	6.11
Cell efficiency（%）	22%
Type diameter and length of cable	4mm²，900mm

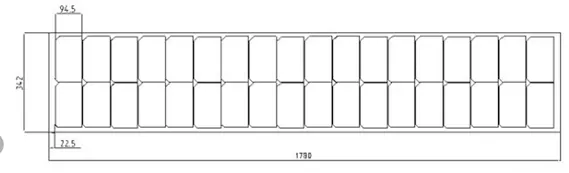

Quantity of solar cell	2*18
dimension of solar cell(mm)	156.75*94.5
dimension of solar tile(mm)	1780*342
Weight(kg)	11
Material of back sheet	black back sheet
specification and thickness of glass	High transparency low iron tempered glass，thickness:3.2mm
Compressive strength	>3000N
water permeability	<0.5%
