Solar Ground Mount
CG101 CM Solar PHC pile ground mounting solution
Fixed-tilt ground structures on PHC piles, ramming piles, concrete and ground screws.

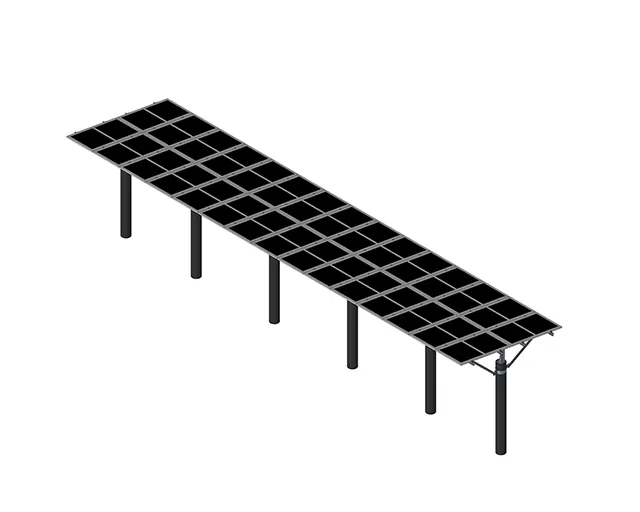

CG101

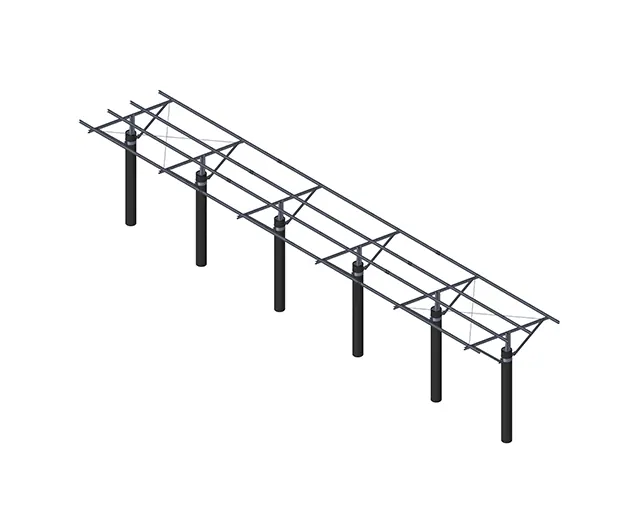

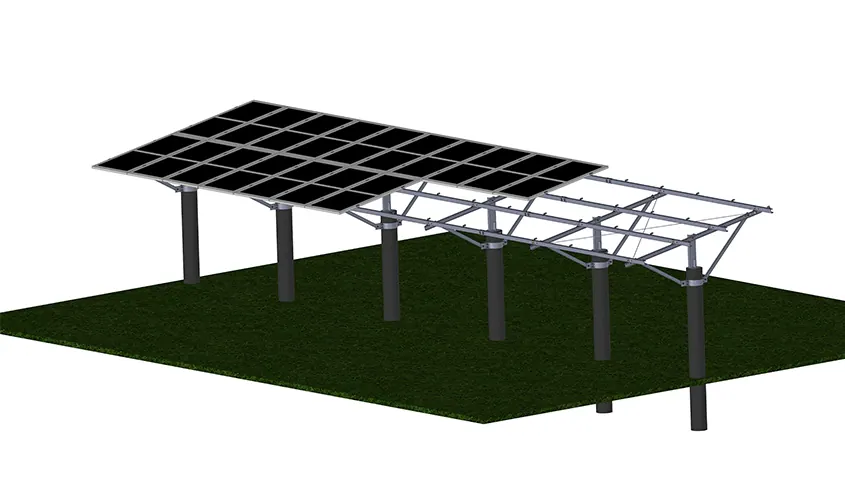

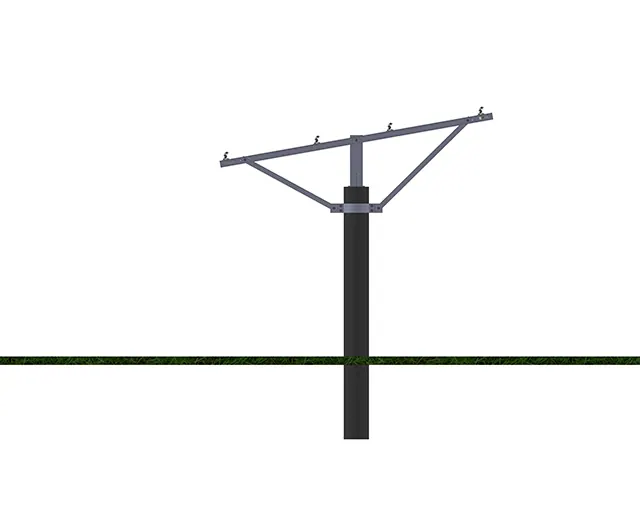

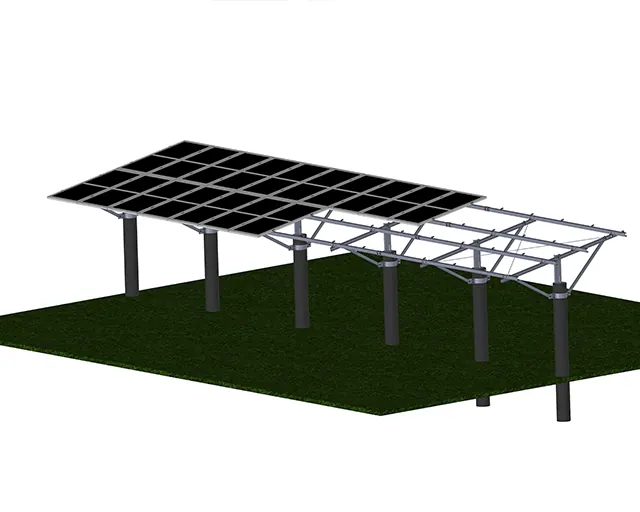

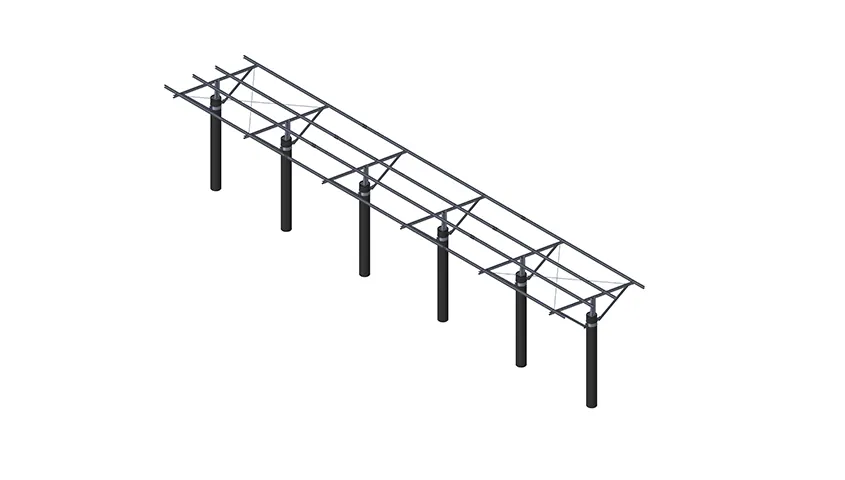

PHC-Pile
CG101 CM Solar PHC pile ground mounting solution
- The PHC pile solution is popularly used in China Mainland, Taiwan, Vietnam, and south Asia.This solution can be used for the following sites.
- ① Soft ground with cohesive soil, sandy soil
- ② The site with heavy humidity and corrosion
- ③ The site with huge wind load
- ④ Most projects with this solution are close to sea share or in some lake.
- Advantage
- ① The system with PHC pile is stronger and stable than the screw pile or punch pile.
- ② The cost of structure can be reduced since the basement is stronger enough.
Data
Technical data
| Installation site | open area, lake and wetland |
|---|---|
| Installation angle | from 5°to 40° |
| Module | poly/mono/thin film |
| Material | HDG Steel/POSMAC Q235B |
| Wind load | up to 57m/s |
| Snow load | 0.5KN/M² |
| Foundation | PHC Pile |
| Anti-corrosive | HDG/VCI/SEBF |
Components

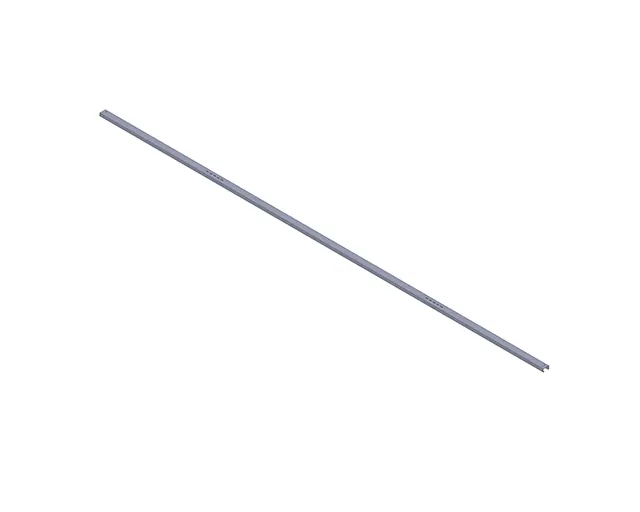

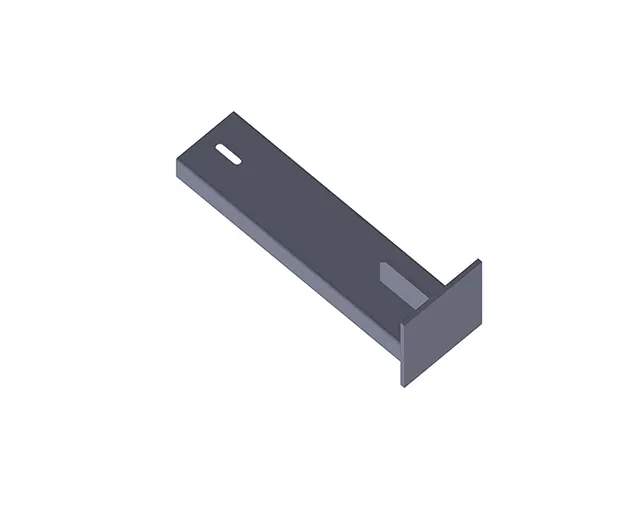

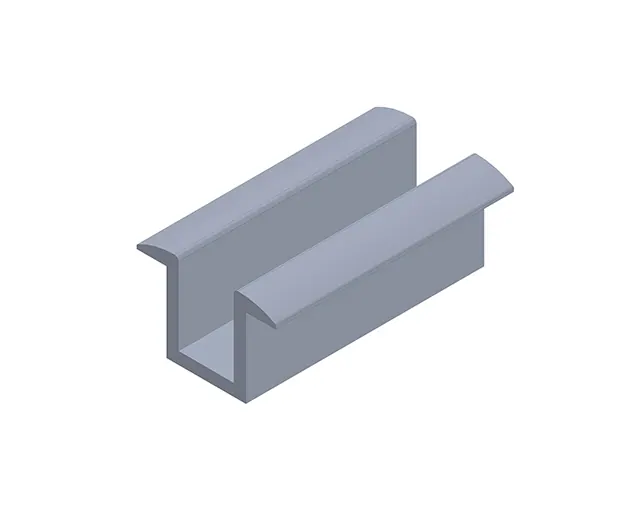

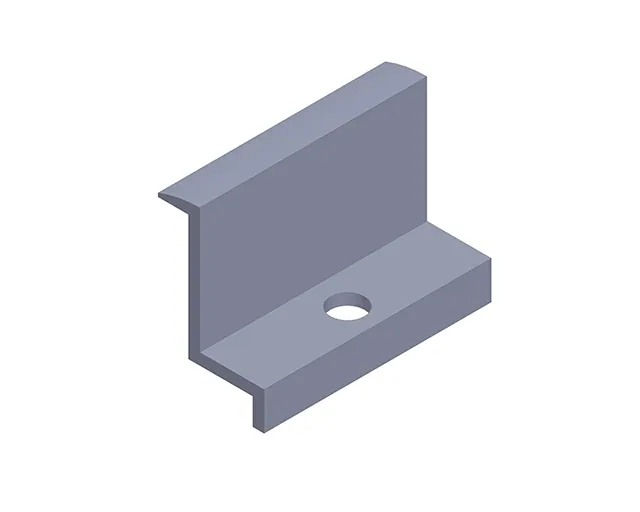

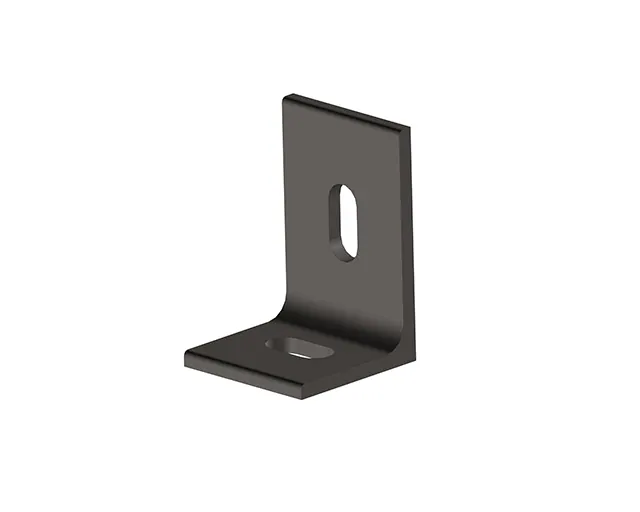

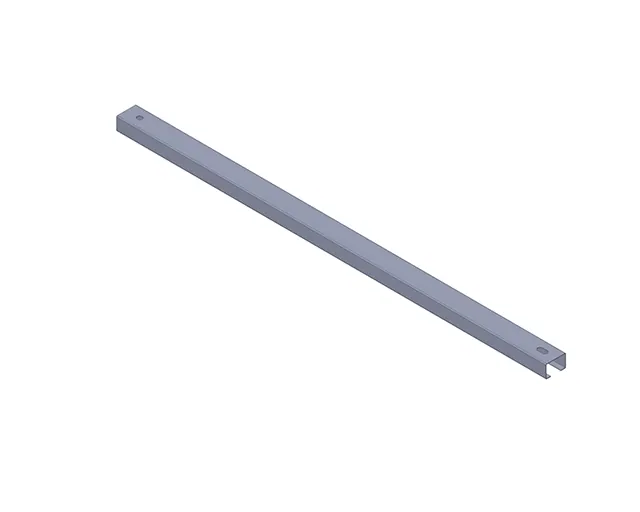

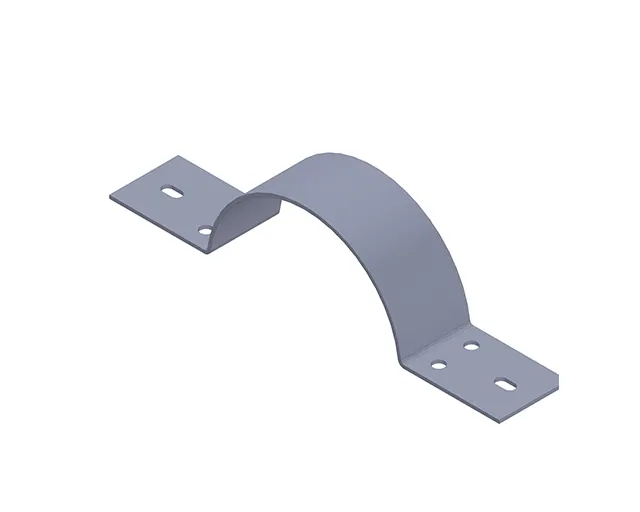

What is in the kit
Installation notes

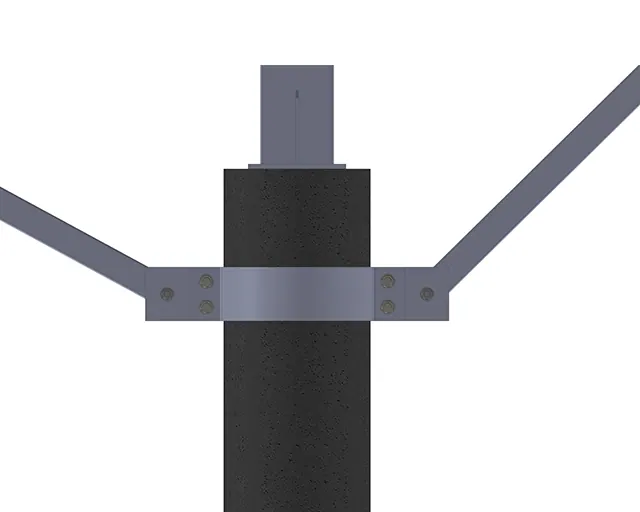

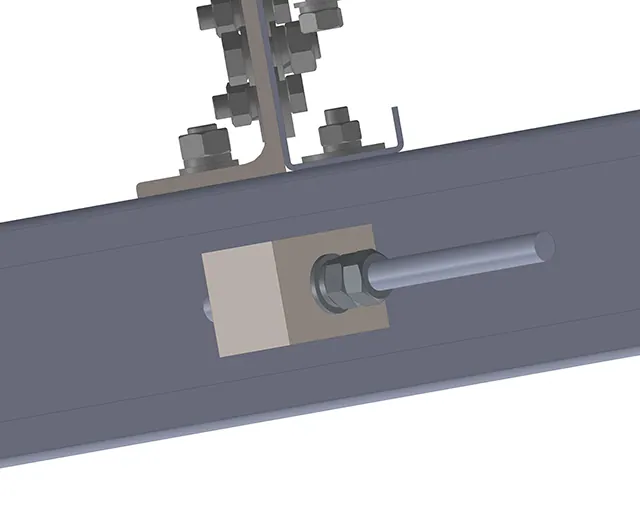

How it goes together
Solar Ground Mount
Related systems
Single Ramming Pile
Simple and fast installation Instead of preparing cement base in advance the vertical shaft is punched into the ground (pile driving depth: 1500-2000mm)
View system
Double Ramming Pile
View system
Single Pile with Cement Injection
View system
