CF103 CM Solar Ballasted System

Name: CF103 CM Solar Ballasted System
Brand: CM Solar
SKU: CF103

Ballasted and raised-panel systems for flat roofs, with no or minimal roof penetration.

CF103

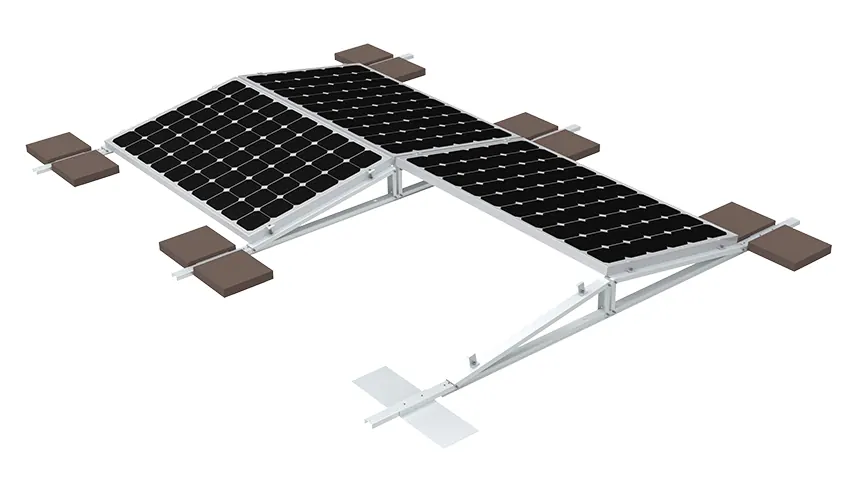

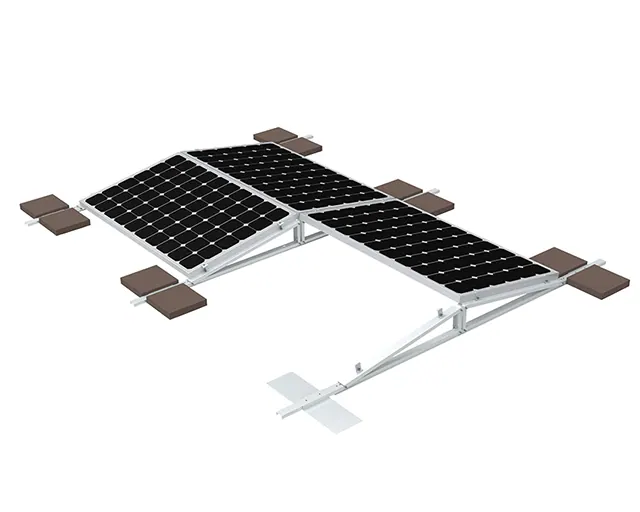

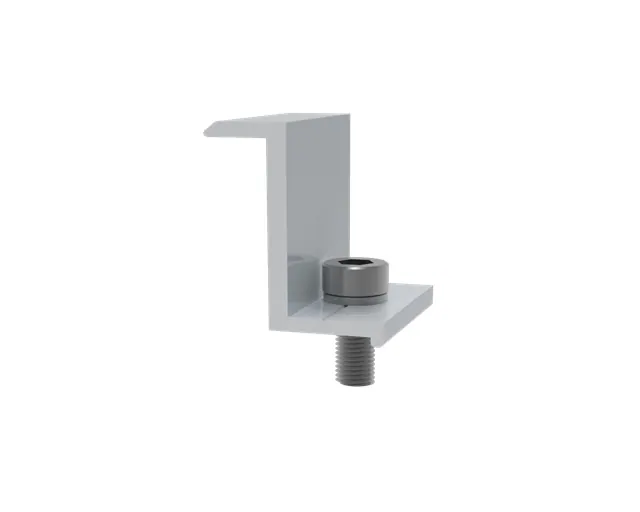

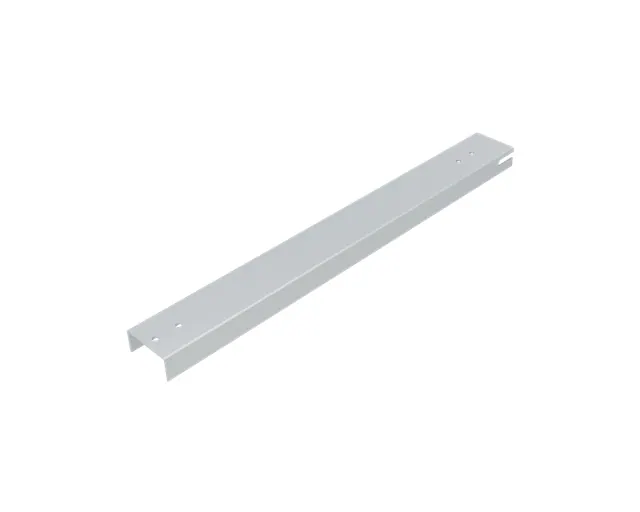

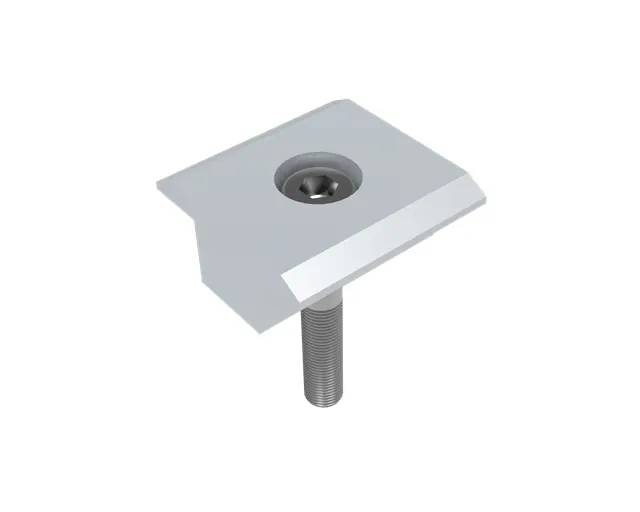

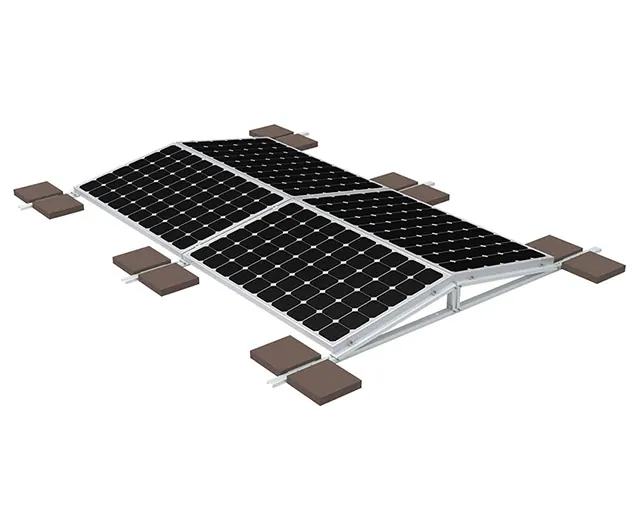

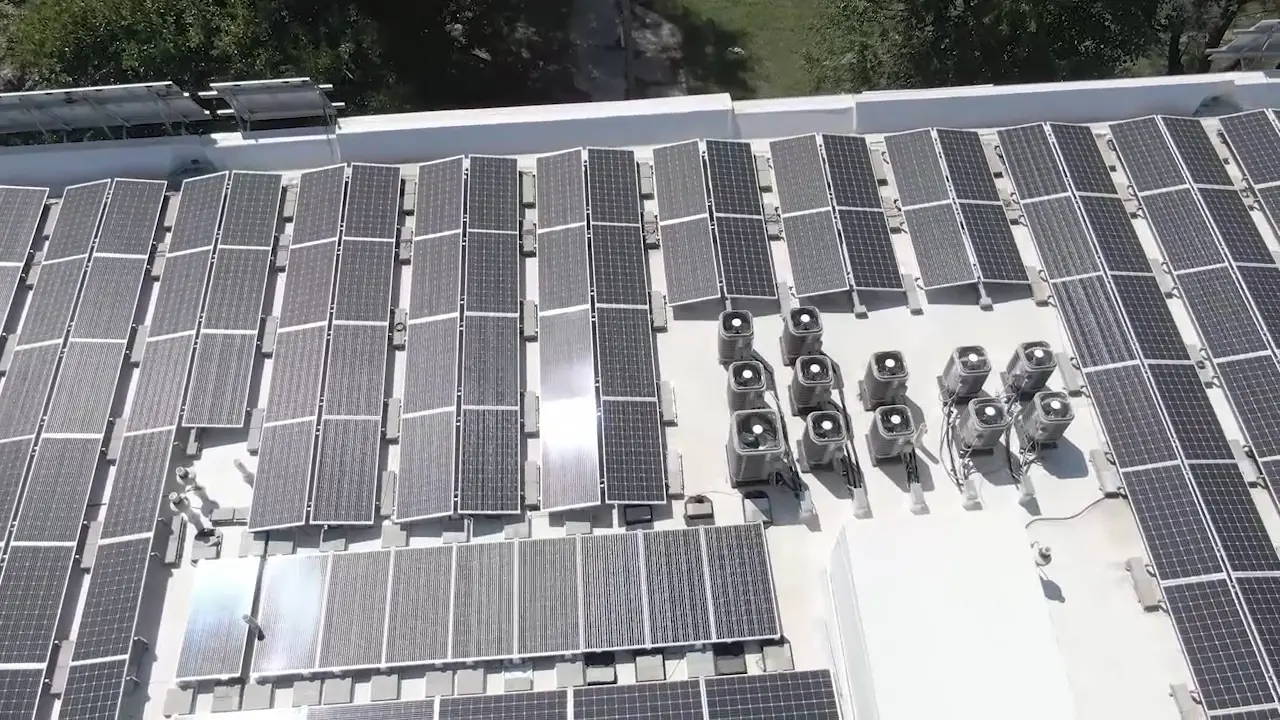

Double Sided Ballasted System

Smart and safe flat roof solution
Completely innovative component-reduced low ballast unilateral elevation system for variable orientation of west and east with same yield performance.
Ideal solution for flat roofs with low ballast potential and with or without parapet

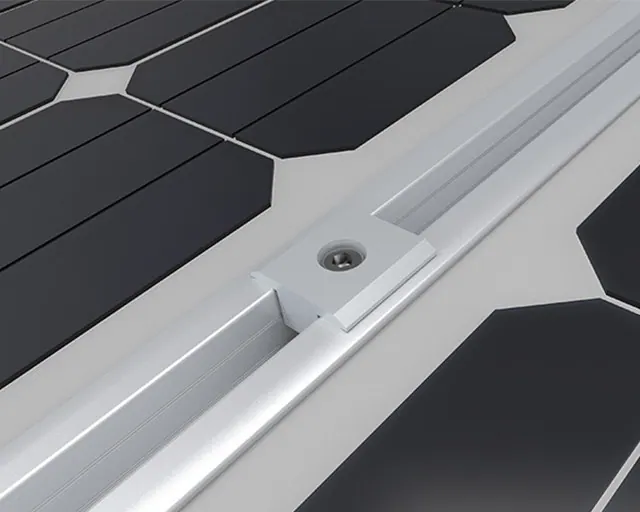

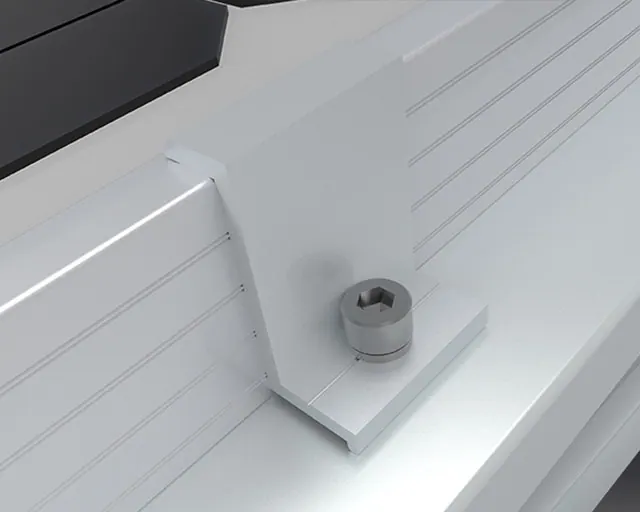

Easy for installation with very few highly pre-assembled components.
Installation time optimization with highly pre-assembled components
Available at 10°.12°.15° elevation angle.

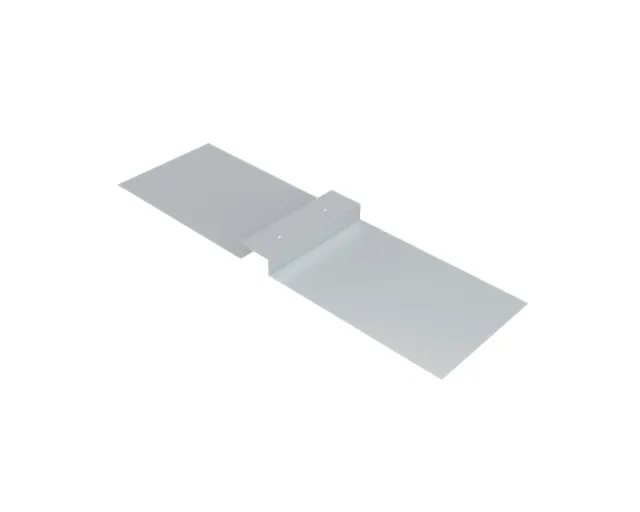

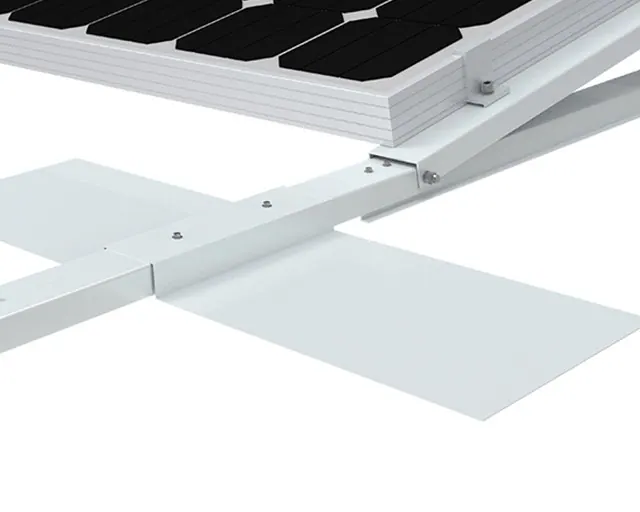

Aerodynamically optimized with wind breaker on reverse enabling minimal ballasted weight.

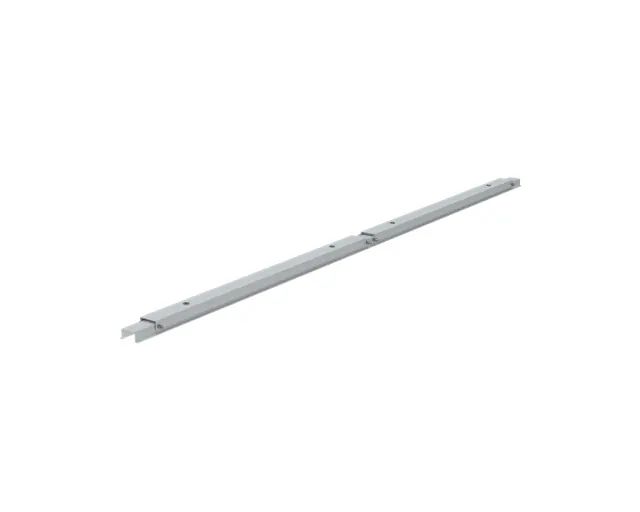

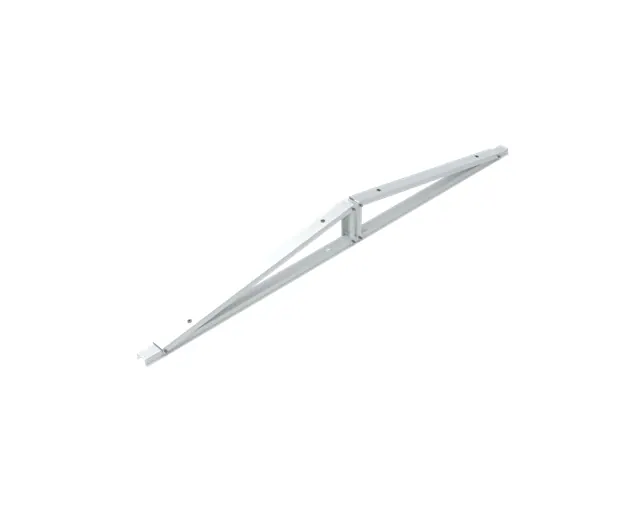

Easy for transportation with foldable triangles saving space.

Data

Scope of application	Flat roof ≤ 10°with single ply membrane or bituminous roof covering also on concrete graveled or green roofs.
Fastening type/roof fixture	Ballasted and no roof penetration for inclination: ≤ 3° With fixed connection at inclination with preassembled kits
PV modules	Permissible module dimensions (L×W×H): 1448-2150 × 950-1060 × 30-50mm Clamping at the short module side permitted (see module approvals…)
Module orientation	Thermal separation after a maximum of 16m Minimum distance to the edge of the roof 600mm
System orientation	East and West
Material	Aluminum ENAW6063-T66 ; Small parts: stainless steel A2-70
Load assumption	DIN EN 1991(Eurocode1)
