Independent Single Axes Tracker

Solar Tracker

Independent Single Axes Tracker

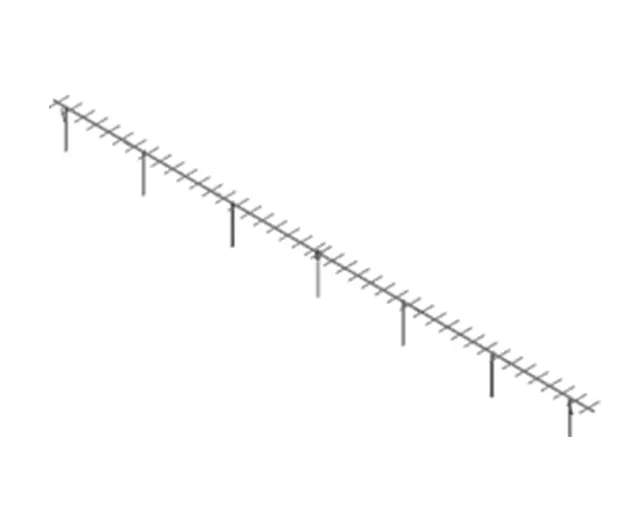

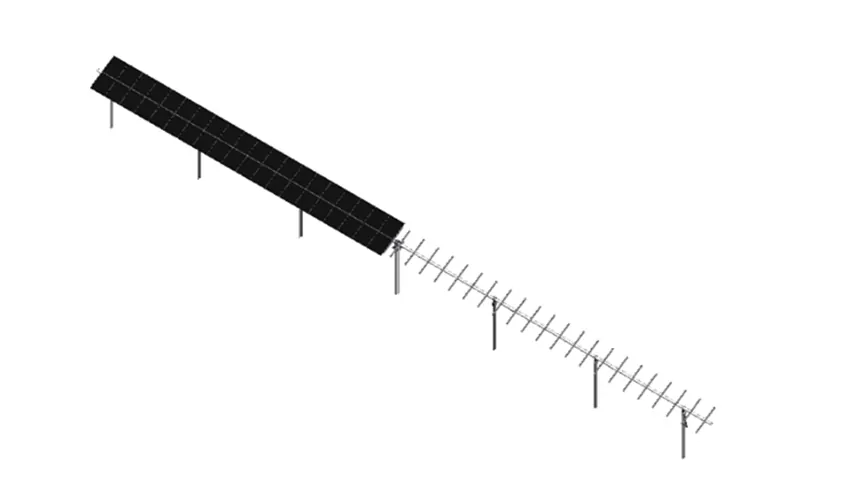

• Typical single-row independent drive tracking system greatly enhances theability of the equipment to adapt to complex terrain facilitates construction andinstallation eliminates the design of the linkage structure and enables the operationand maintenance cleaning vehicles to shuttle freely through the array.
• The component design is modular and standardized. During the application ofthe project the components transfer of the equipment is not limited.

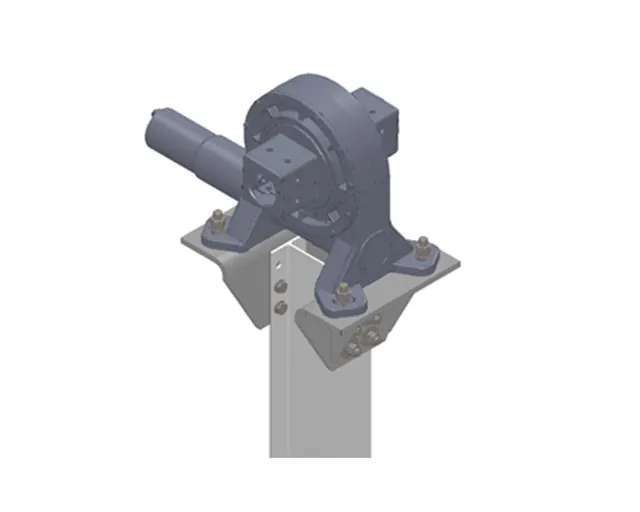

• The system introduces independent photovoltaic panels to charge the energy storage battery and the energy storage battery supplies power to the electronic control system and DC motor. This power supply system can meet the continuousand stable operation of the system for 7 consecutive days of rainy weather.
• The device has the latest Internet of Things-LoRa wireless transmission technology which can realize long-distance transmission and the signal is more stable. The maximum transmission distance can reach more than 5km.
• The system has self-reset \ heavy rain cleaning \ manual operation function at the same time with overload \ over-current \ super-stroke \ strong wind \ snow \ hail protection.
