CF101 CM Solar Ballasted System
Ballasted and raised-panel systems for flat roofs, with no or minimal roof penetration.
CF101

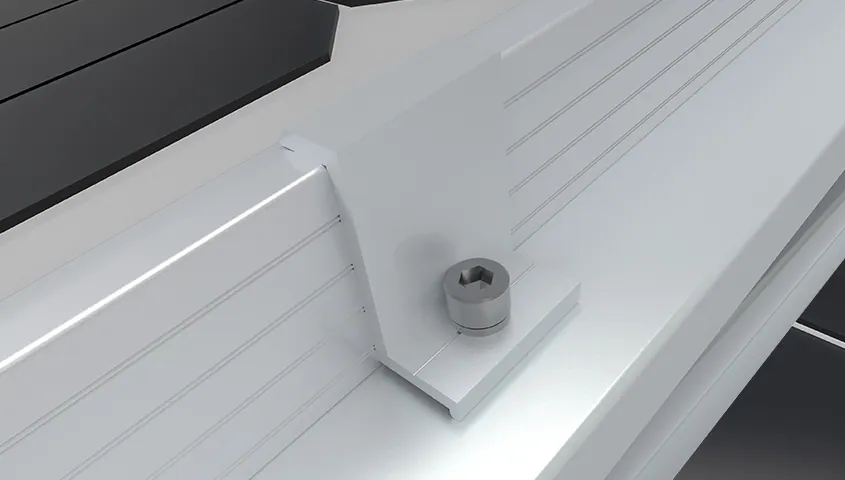

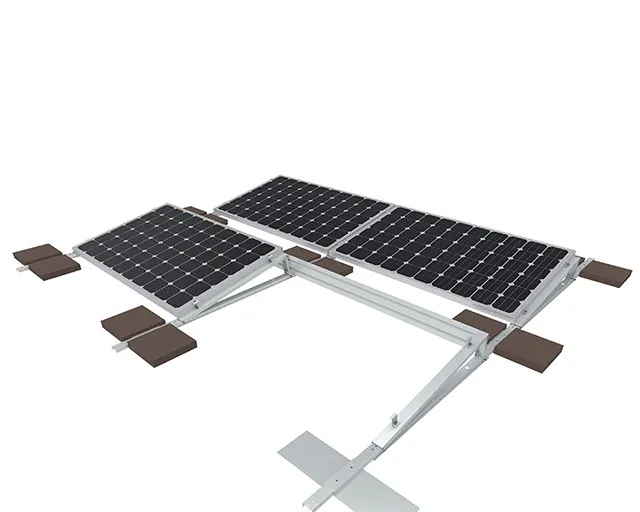

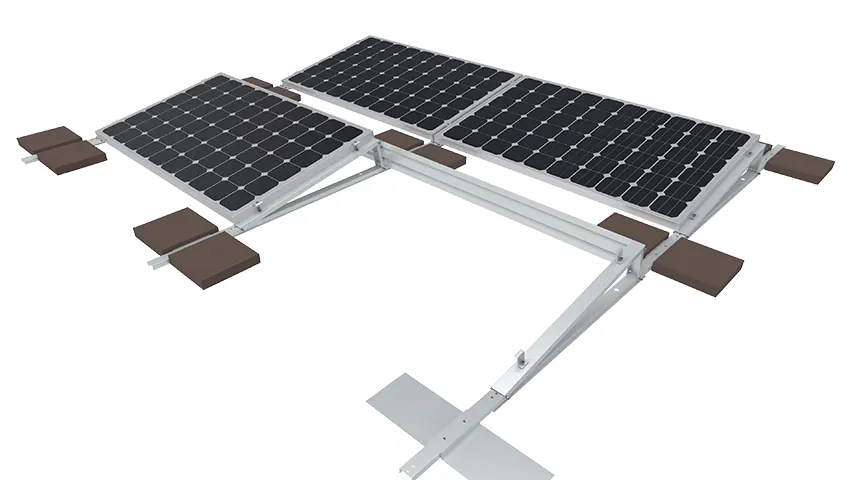

Single Sided Ballasted System
CF101 CM Solar Ballasted System
- Smart and safe flat roof solution
- Completely innovative component-reduced low ballast unilateral elevation system for variable orientation of south-east to south-west with same yield performance.

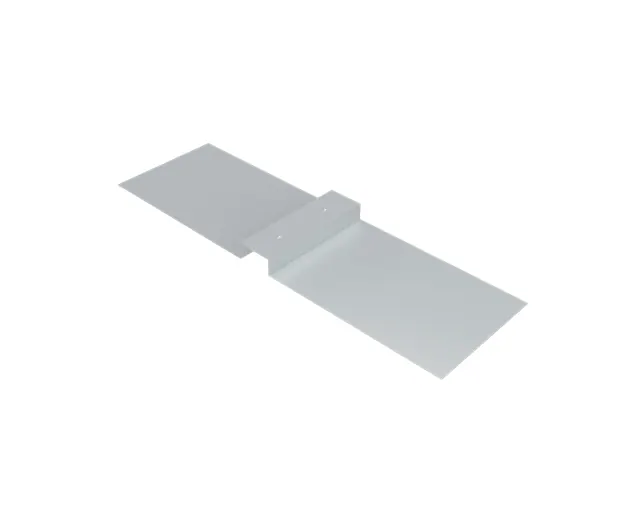

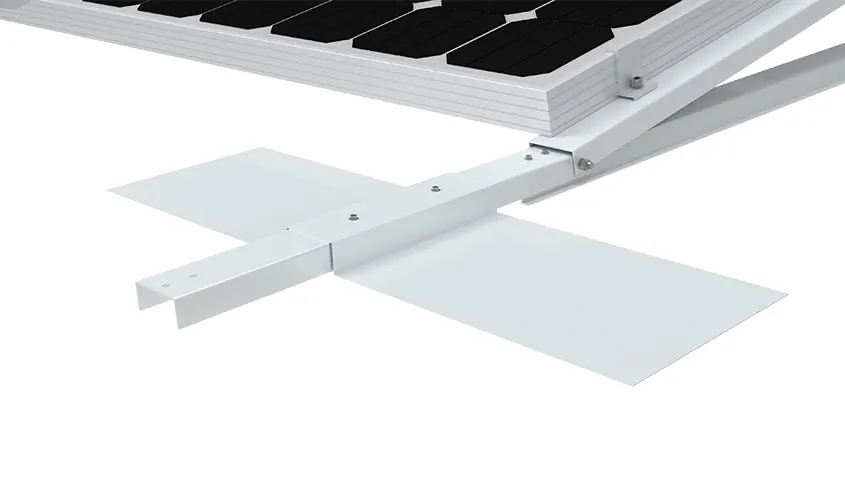

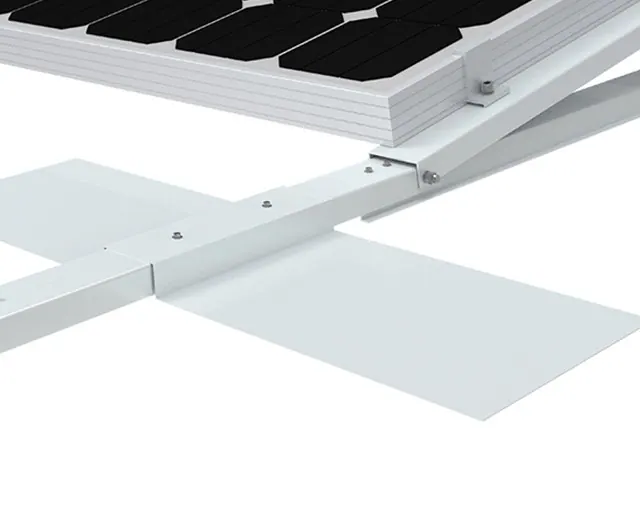

- Ideal solution for flat roofs with low ballast potential and with or without parapet

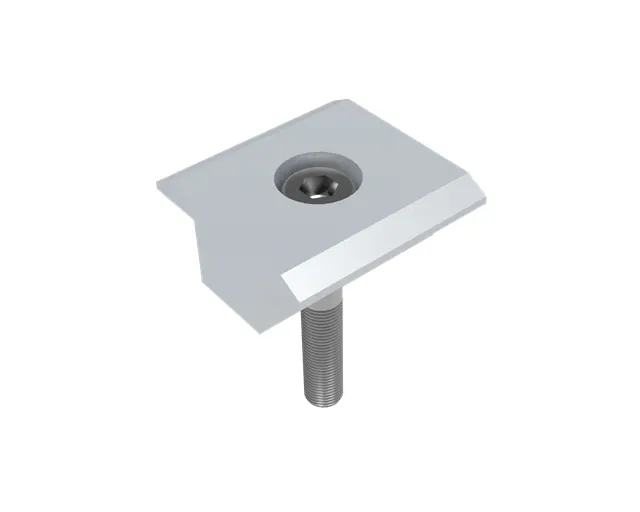

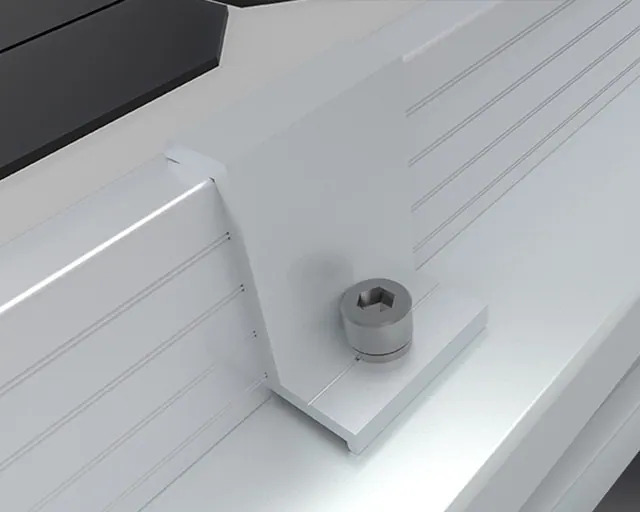

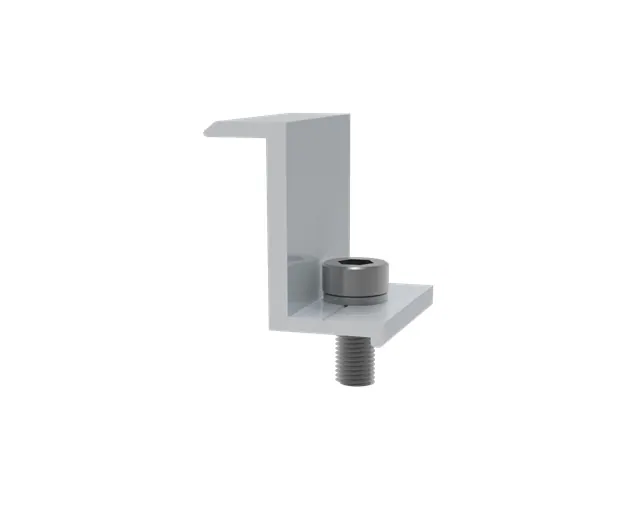

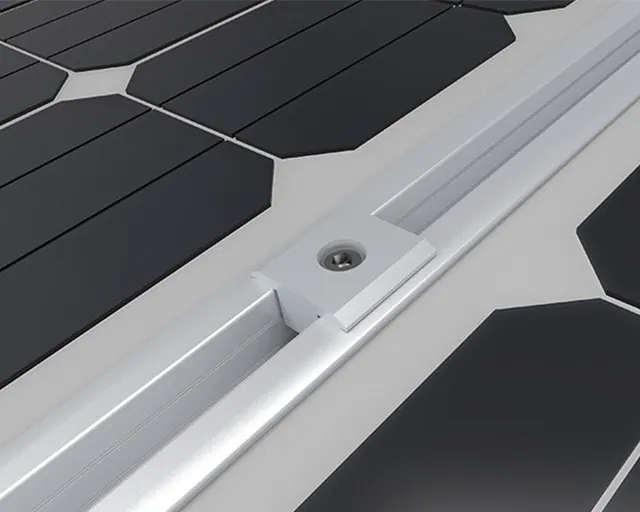

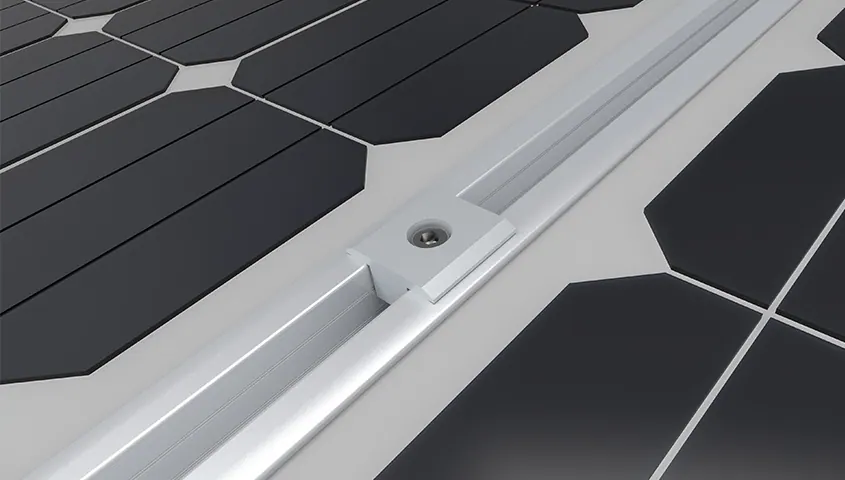

- Easy for installation with very few highly pre-assembled components.

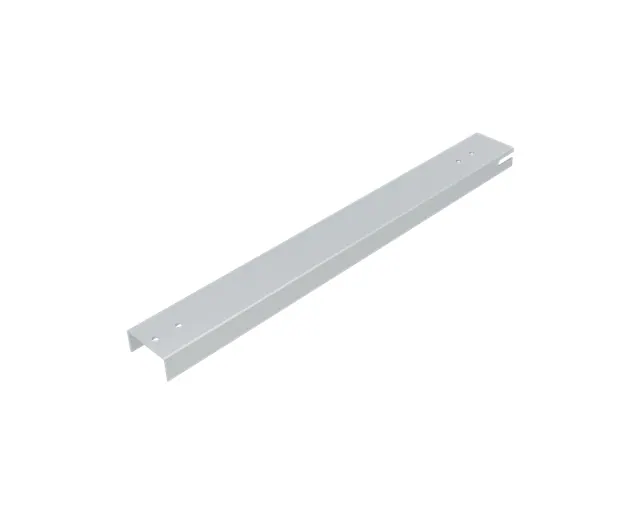

- Installation time optimization with highly pre-assembled components
- Available at 10°.12°.15° elevation angle.

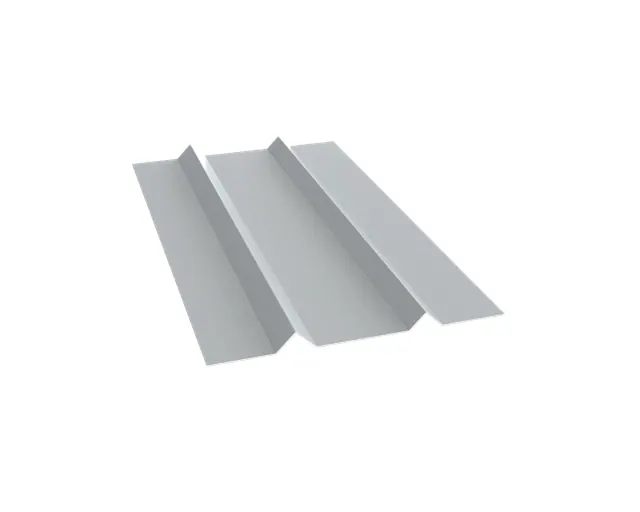

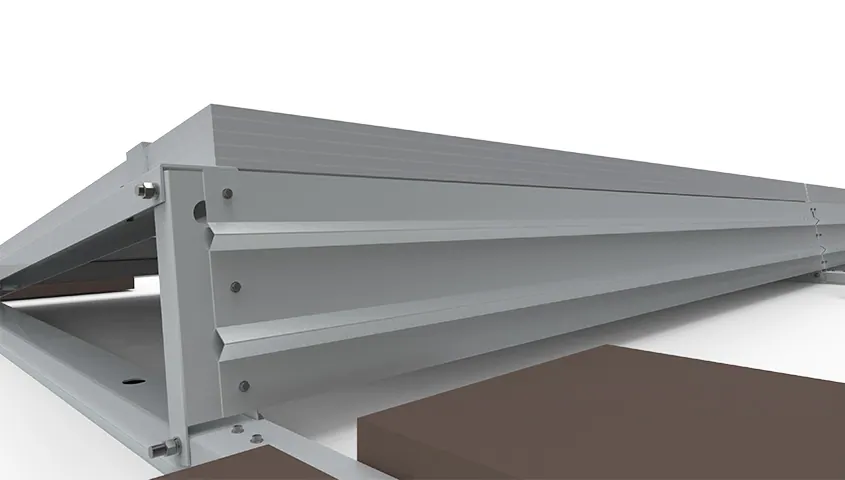

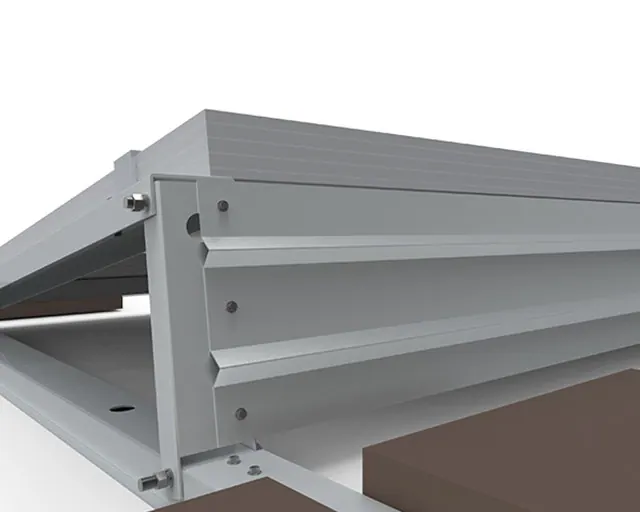

- Aerodynamically optimized with wind breaker on reverse enabling minimal ballasted weight.

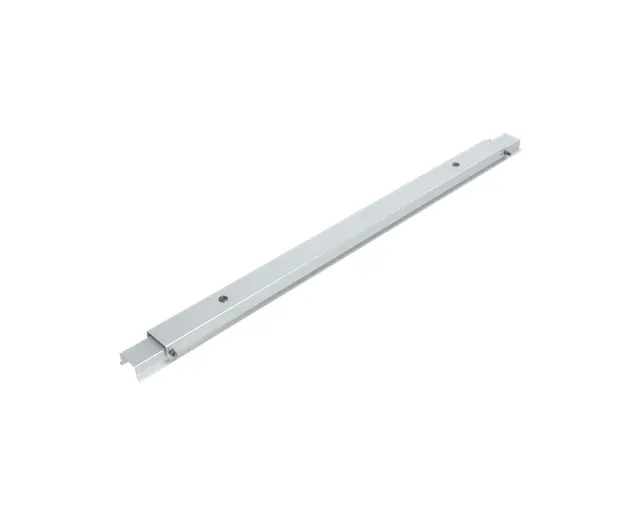

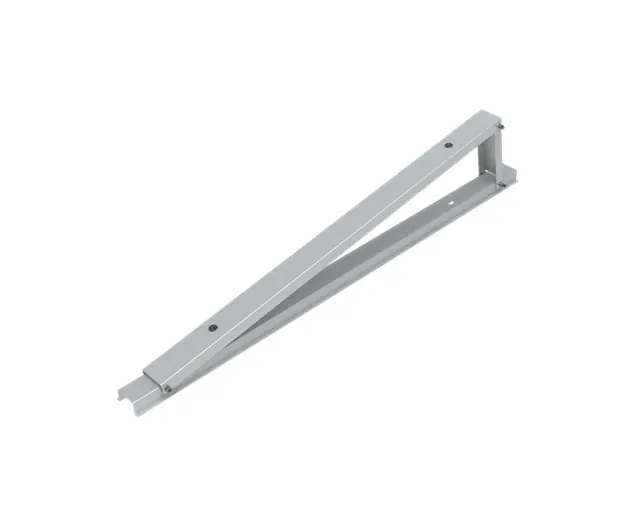

- Easy for transportation with foldable triangles saving space.
Data
Technical data
| Scope of application | Flat roof ≤ 10°with single ply membrane or bituminous roof covering also on concrete graveled or green roofs. |
|---|---|
| Fastening type/roof fixture | Ballasted and no roof penetration for inclination: ≤ 3° With fixed connection at inclination with preassembled kits |
| PV modules | Permissible module dimensions (L×W×H): 1448-2150 × 950-1060 × 30-50mm Clamping at the short module side permitted (see module approvals…) |
| Module orientation | Vertical |
| System orientation | South-east to South-west |
| Material | Aluminum ENAW6063-T66 ; Small parts: stainless steel A2-70 |
| Load assumption | DIN EN 1991(Eurocode1) |
