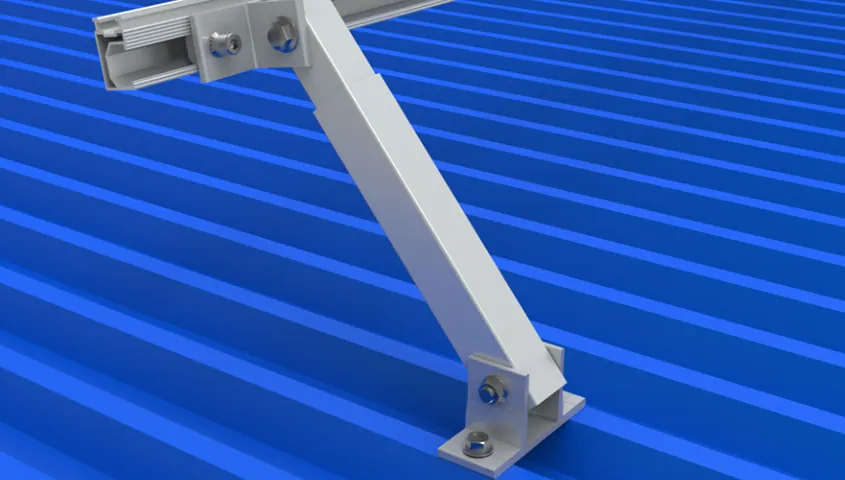

CF104 CM Solar Raised Panel Solution
- Smart and safe flat roof solution
- Adjustable system designed for flat roof
- Available at 10°-15° 15°-30° 30°-60°elevation angle
- Easy for transportation with foldable triangles saving space
Data
Technical data
| Field on application | Flat roof |
|---|---|
| PV modules | All modules |
| Module orientation | Vertical |
| Material | Aluminum |
| Wind load | Up to 60m/s |
| Snow load | Up to 1.8kn/m2 |

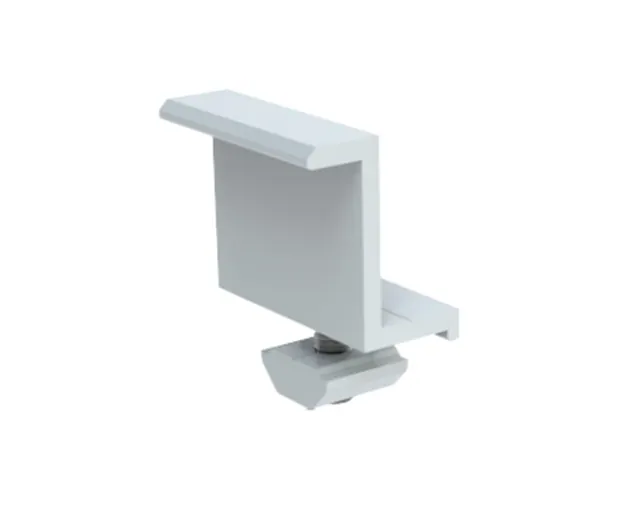

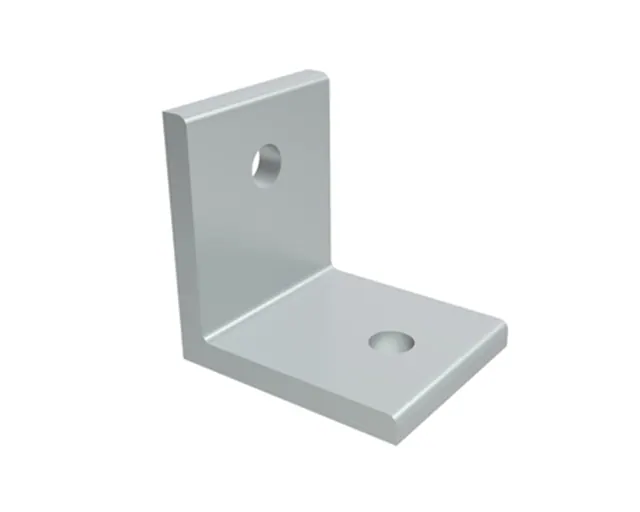

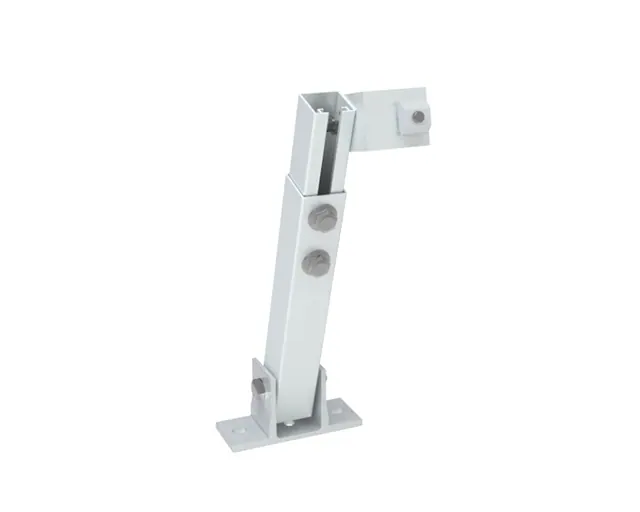

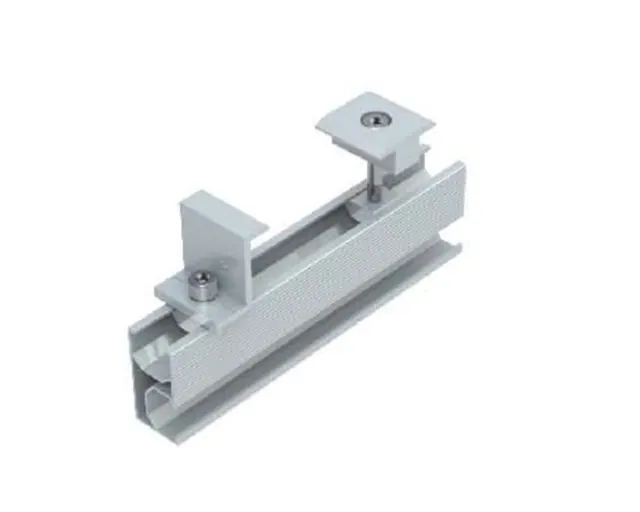

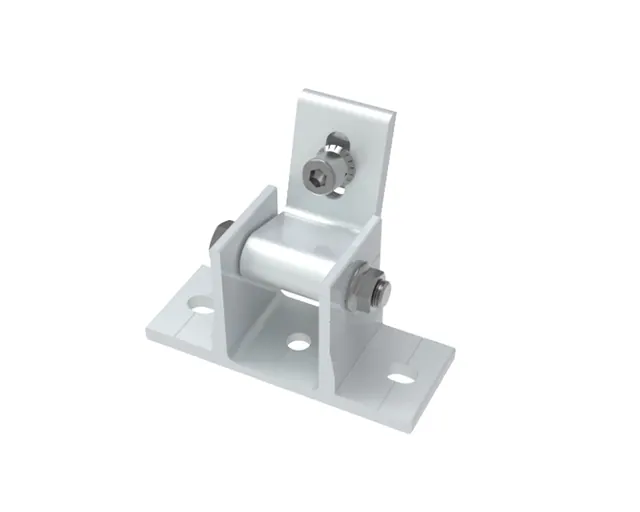

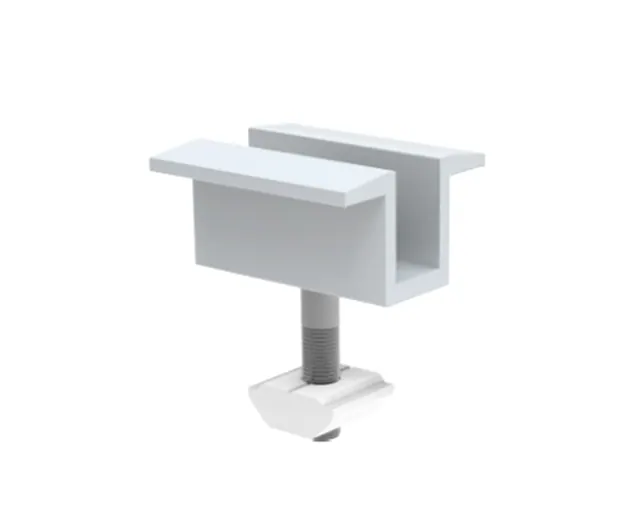

Components
What is in the kit

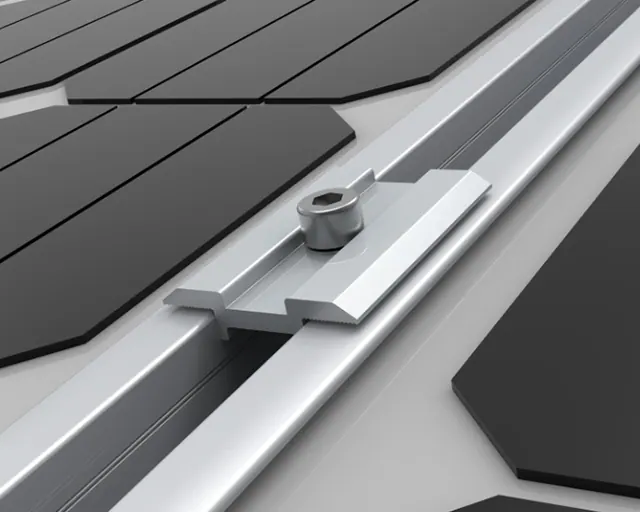

Installation notes
How it goes together
